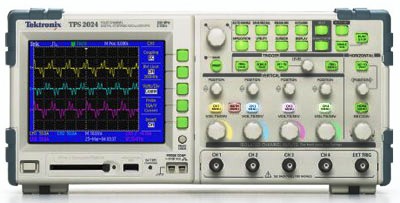

200 MHz Battery Operated Digital Storage Oscilloscope, Four Channel. Sample Rate on Each Channel: 2.0 GS/s. Record Length: 2.5 K points. Battery Operation: Capacity for two hot-swappable battery packs, one standard battery pack offers 4 hours of battery operation. Vertical Resolution: 8 bits (normal or with averaging). Vertical Sensitivity: 2 mV to 5 V/div on all models with calibrated fine adjustment. DC Vertical Accuracy: ±3%. Max Input Voltage (1 M-Ohm): 300 VRMS CAT II at BNC signal to BNC shell, 1000 VRMS CAT II at probe tip to earth ground with optional P5120 passive, high-voltage probe. Position Range: 2 mV to 200 mV/div ±2 V, >200 mV to 5 V/div ±50 V. Bandwidth Limit: 20 MHz. Linear Dynamic Range: ±5 div. Time Base Range: 2.5 ns to 50 s/div. Time Base Accuracy: 50 ppm. Input Impedance: 1 M-Ohm ±2% in parallel with 20 pF. Input Coupling: AC, DC, GND. Acquisition Modes; Peak Detect: High-frequency and random glitch capture. Captures glitches as narrow as 12 ns typical using acquisition hardware at all time/div settings from 5 µs/div to 50 s/div. Sample: Sample data only. Average: Waveform averaged, selectable: 4, 16, 64, 128. Single Sequence: Use the Single Sequence button to capture a single triggered acquisition sequence at a time. Scan/Roll Mode: At acquisition time base settings of =100 ms/div. Trigger System; Trigger Modes: Auto, Normal, Single Sequence. Trigger Types; Edge (rising or falling): Conventional level-driven trigger. Positive or negative slope on any input. Coupling selections: AC, DC, Noise Reject, HF Reject, LF Reject. Video: Trigger on all lines or individual line, odd/even or all fields from composite video, or broadcast standards (NTSC, PAL, SECAM). Pulse Width (or glitch): Trigger on a pulse width less than, greater than, equal to, or not equal to a selectable time limit ranging from 33 ns to 10 s. Trigger Source: CH1, CH2, Ext, Ext/5, Ext/10. Display: 1/4 VGA, passive color LCD with color on black background with adjustable multilevel contrast and brightness controls.
|
Sales Page
Related Bench Equipment Terms and Definitions. For a complete list go to our
Terms and Definitions Page.
dBc
dBc (decibels relative to the carrier) is the power ratio of a signal to a carrier signal, expressed in decibels. If the dBc figure is positive, then the relative signal strength is greater than the carrier signal strength. If the dBc figure is negative, then the relative signal strength is less than carrier signal strength.
Load Regulation
Load regulation is the capability to maintain a constant voltage (or current) level on the output channel of a power supply despite changes in the supply's load (such as a change in resistance value connected across the supply output).
Power Linearity
When changing the power level and measuring the differences (in dB) between actual and displayed power levels, the power linearity is ± half the span (in dB) between the maximum and the minimum value of all differences.
Settling Time
Settling time of an output device is the time elapsed from the application of an ideal instantaneous step input to the time at which the amplifier output has entered and remained within a specified error band, usually symmetrical about the final value.
|
