ILX LIGHTWAVE LDC-3900 REPAIR and ILX LIGHTWAVE LDC-3900 CALIBRATION
|
The ILX LIGHTWAVE LDC-3900 is currently in stock and available for purchase on our
Sales Page
It is also available for immediate rental.
|
Custom-Cal has a high success rate in the repair of the ILX LIGHTWAVE LDC-3900. A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the ILX LIGHTWAVE LDC-3900 Calibration.
We specialize in quick turnaround times and we can handle expedited deliveries upon request.
Need another Laser Diode Controller? Shop for Comparable Products on our
used Laser Diode Controller page
|
|
|
|

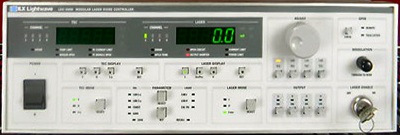

ILX LIGHTWAVE LDC-3900
Spec Sheet
|
|
|
The ILX Lightwave LDC-3900 Modular Laser Diode Controller features four channels with eight isolated outputs for controlling multiple laser diodes. Modules include current sources, these modules also feature a photodiode measurement circuit for devices with backfacet monitor photodiode and analog modulation up to 500kHz for dithering the laser current for wavelength tuning. Five different current source modules up to 8A can be driven in any one of the following modes: Constant current, low bandwidth; Constant current, high bandwidth; Constant optical power. TE (thermoelectric) controller modules with up to 32W of power and voltage measurement. TEC modules accept thermistor, IC and RTD temperature sensors. A low noise, biopolar output with TE voltage measurement and an ultra-stable topology achieves stabilities better than 0.005°C. Controller modules combine a current source with a temperature controller in one module. Laser current from 200mA to 2A is available with an integrated 12W temperature controller for current and temperature control of laser diodes.. An independent power supply powers each channel, providing protection and stability for your laser diode. Standard GPIB IEEE interface.
|
Sales Page
Related Optical Terms and Definitions. For a complete list go to our
Terms and Definitions Page.
dBm
Optical power referenced to 1 millimatt
Multimode Fiber
Multimode Fiber has a large core (almost always 62.5 microns - a micron is one one millionth of a meter - but sometimes 50 microns) and is used with LED sources at wavelengths of 850 and 1300 nm for short distance, lower speed networks like LANs. Both multimode and singlemode fiber have an outside diameter of 125 microns - about 5 thousandths of an inch - just slightly larger than a human hair.
Power Repeatability
Power Repeatability is the random uncertainty in reproducing the power level after changing and re-setting the power level. The power repeatability is ± half the span (in dB) between the highest and lowest actual power. Note: - The long-term power repeatability can be obtained by taken the power repeatability and power stability into account.
Refractive Index
The refractive index or index of refraction of a substance is a measure of the speed of light in that substance. It is expressed as a ratio of the speed of light in vacuum relative to that in the considered medium. The velocity at which light travels in vacuum is a physical constant, and the fastest speed at which energy or information can be transferred. However, light travels slower through any given material, or medium, that is not vacuum.
Total insertion loss
A measure of the loss of light within an optical component
|
|
|
