NEWPORT 8000 CALIBRATION and NEWPORT 8000 REPAIR


A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the NEWPORT 8000 Calibration. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Laser Diode Controller? Shop for Comparable Products on our  used Laser Diode Controller page


   NEWPORT 8000   Description / Specification:

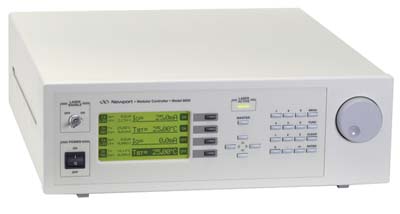

NEWPORT 8000 4-Ch Modular Laser Diode Controller

The Newport 8000 4 channel Modular Mainframe Controller accepts: Temperature Controller (TEC) Modules; 40 Watt (5A/8V), ultra stable bipolar output. Thermistor, AD590, LM335, and Pt RTD sensors. Dual Temperature Controller Modules; Two independent outputs per module. 2.5 Amps at 6 Volts (15 Watt). Laser Diode Driver (LDD) Modules; 200 mA to 6 Amp low noise outputs. External analog modulation. Adjustable photodiode bias voltage. Comprehensive laser diode protection features. MOPA Laser Diode Driver Module; 500 mA LDD for master oscillator section. 4 Amp LDD for power amplifier section. Connector for TEC module input. Combination LDD/TEC Modules; Internal function generator, (Waveforms: Sine & square wave. Frequency Range: 200 Hz to 2 kHz and 200 Hz to 2 kHz). 2.5 Amps at 6 Volts (15 Watt) highly stable TEC. 200 mA to 2 Amp low noise LDD. Dual Laser Diode Driver (LDD) Module; Two independent outputs per module. 100 to 1,000 mA per channel. Display; Type: LCD graphics display, 240 (W) x 128 (H) pixels. Back Lighting: Green LED. Controls: Brightness and Contrast (contrast optimizes viewing angle). Channel Active: Green LASER ACTIVE LED indicates that at least one Laser Diode output is on and the LCD graphics shows details of active channels. GPIB/IEEE 488.2 and RS-232C Interface





Related Optical Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Chromatic Dispersion
Chromatic Dispersion is a broadening of the input signal as it travels down the length of the fiber. Chromatic Dispersion results from a variation in propagation delay with wavelength, and is affected by fiber materials and dimensions.

Detector
A Detector is a signal conversion device that converts power from one form to another, such as from optical power to electrical power

Jitter
Jitter in technical terms is the deviation in or displacement of some aspect of the pulses in a high-frequency digital signal. Jitter is the time variation of a periodic signal in electronics and telecommunications, often in relation to a reference clock source. Jitter may be observed in characteristics such as the frequency of successive pulses, the signal amplitude, or phase of periodic signals. Jitter is a significant, and usually undesired, factor in the design of almost all communications links (e.g., USB, PCI-e, SATA, OC-48). In clock recovery applications it is called timing jitter.

Polarization Mode Dispersion (PMD)
Polarization mode dispersion (PMD) is a form of modal dispersion where two different polarizations of light in a waveguide, which normally travel at the same speed, travel at different speeds due to random imperfections and asymmetries, causing random spreading of optical pulses. It is he difference between the maximum and minimum values of loss typically measured in ps/km^1/2.

Please contact us for your NEWPORT 8000 CALIBRATION and/or NEWPORT 8000 REPAIR

Standard Calibration $75.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of this model. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.
