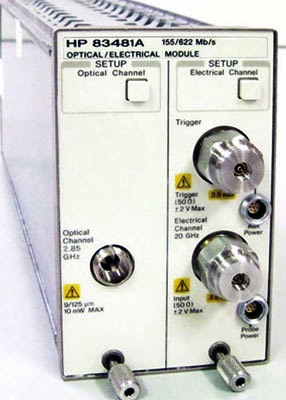

The Agilent 83481A is a 3 GHz optical / 20 GHz electrical module plug-in for 83480A and 86100A digital communications analyzer. Has an integrated, calibrated optical receiver with nearly 3 GHz bandwidth, or automatically configurable as a 155 Mb/s and 622 Mb/s calibrated SONET/SDH reference receiver. Independent of the optical channel is an electrical channel with 20 GHz bandwidth. Option 040, Fourth-order 155 Mb/s and Fourth-order 622 Mb/s Filters. Option 050, Fifth-order 155 Mb/s and Fifth-order 622 Mb/s Filters. Option 052, Fourth-order 155 Mb/s and Fifth-order 155 Mb/s Filters. Option 062, Fourth -order 622 Mb/s and Fifth-order 622 Mb/s Filters
|
Sales Page
Related Optical Terms and Definitions. For a complete list go to our
Terms and Definitions Page.
Chromatic Dispersion
Chromatic Dispersion is a broadening of the input signal as it travels down the length of the fiber. Chromatic Dispersion results from a variation in propagation delay with wavelength, and is affected by fiber materials and dimensions.
Detector
A Detector is a signal conversion device that converts power from one form to another, such as from optical power to electrical power
Jitter
Jitter in technical terms is the deviation in or displacement of some aspect of the pulses in a high-frequency digital signal. Jitter is the time variation of a periodic signal in electronics and telecommunications, often in relation to a reference clock source. Jitter may be observed in characteristics such as the frequency of successive pulses, the signal amplitude, or phase of periodic signals. Jitter is a significant, and usually undesired, factor in the design of almost all communications links (e.g., USB, PCI-e, SATA, OC-48). In clock recovery applications it is called timing jitter.
Polarization Mode Dispersion (PMD)
Polarization mode dispersion (PMD) is a form of modal dispersion where two different polarizations of light in a waveguide, which normally travel at the same speed, travel at different speeds due to random imperfections and asymmetries, causing random spreading of optical pulses. It is he difference between the maximum and minimum values of loss typically measured in ps/km^1/2.
|
