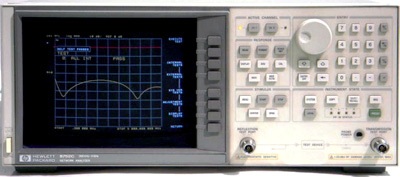

AGILENT 8752C Buy / Purchase at the right Price

Custom-Cal has a used AGILENT 8752C RF Network Analyzer in stock and ready for purchase at a fair price. All units sold by Custom-Cal are provided with an applicable NIST traceable calibration/performance verification and a 90 day warranty (unless otherwise noted). With this added service, you can be confident that you are buying a fully functional unit that meets OEM specifications.

We are always willing to work with the customer on price. If you would like to buy a used AGILENT 8752C but, don't see the price you want, please name your price below and we will try to find one for you to purchase.

General description of the AGILENT 8752C for sale.

The HP 8752C RF network analyzer provides simple and complete vector network measurements in a compact, fully-integrated RF network analyzer. The integrated synthesized source provides measurement port power level of +5 to -20 dBm with linear, log, list, power, and CW sweep types. A new built-in step attenuator (Option 004) gives an improved power range of +10 to -85 dBm for testing power sensitive devices such as amplifiers. The sensitive tuned receivers provide up to 110 dB of dynamic range. Source Frequency Range: 300 kHz to 1.3 GHz (std.); 300 kHz to 3 GHz (Option 003); 300 kHz to 6 GHz (Option 006). Source Frequency Resolution: 1 Hz. Accuracy: ±10 ppm at 25° ± 5° C. Output Power Range: -20 to +5 dBm (std), -85 to +10 dBm (Option 004), -85 to +8 dBm (Option 004 and 075). Output Resolution: 0.05 dB. Output Level Accuracy: ±1 dB. Output Level Linearity relative to -5 dBm output level: (-20 to -15 dBm) ±0.5 dB; (-15 to 0 dBm) ±0.2 dB; (0 to +5 dBm) ±0.5 dB. Receiver Frequency Range: 300 kHz to 1.3 GHz (std.), 300 kHz to 3 GHz (Option 003), 300 kHz to 6 GHz (Option 006). Receiver Reflection: -75 dBm (3 kHz IF BW), -85 dBm (10 Hz IF BW). Receiver Transmission: -90 dBm (3 kHz IF BW), -110 dBm (10 Hz IF BW) [300 kHz to 3 GHz]; -85 dBm (3 kHz IF BW), -105 dBm (10 Hz IF BW) [3 to 6 GHz]. Group Delay Range: 1/(2 x minimum aperture). Aperture: Frequency span/(no. of points -1), up to 20% of frequency span. Accuracy (in seconds): (phase accuracy (in degrees)/ (360 x aperture in Hz). Options: 003, 3 GHz Frequency Extension. 004, Step Attenuator. 006, 6 GHz Frequency Extension. 010, Time-Domain Capability. 075, 75 ohm Impedance. 802, Add Dual Disk Drive and HP-IB Cable.

Stock Photo

Current Inventory Available for Purchase. Please check the box of the one(s) you would like to buy.

Purchase	Inventory ID	Serial Number	Instrument Notes	Sale Price
Buy	104023	3410A03297	Option 006	Price $3,500.00

Similar Instruments Available for Purchase. Please follow links for more information and price.

	Manufacturer	model	Instrument Type	OEM Name	Starting Price
Price and Info	AGILENT	8714C	Network Analyzer, SNA, VNA	RF Economy Network Analyzer	Buy it Now Price $4,000.00
Price and Info	AGILENT	8714ES	Network Analyzer, SNA, VNA	3 GHz S-parameter Vector Network Analyzer	Buy it Now Price $3,400.00
Price and Info	AGILENT	8720ES	Network Analyzer, SNA, VNA	S-Parameter Vector Network Analyzer	Buy it Now Price $19,500.00
Price and Info	AGILENT	8753C	Network Analyzer, SNA, VNA	RF Network Analyzer	Buy it Now Price $3,600.00
Price and Info	AGILENT	8753D	Network Analyzer, SNA, VNA	S-parameter Network Analyzer	Buy it Now Price $4,200.00
Price and Info	AGILENT	8753E	Network Analyzer, SNA, VNA	S-parameter Network Analyzer	Buy it Now Price $7,200.00
Price and Info	AGILENT	8753ES	Network Analyzer, SNA, VNA	S-parameter Network Analyzer	Buy it Now Price $10,000.00
Price and Info	AGILENT	E5071C	Network Analyzer, SNA, VNA	ENA Network Analyzer	Buy it Now Price $26,500.00
Price and Info	ANRITSU	37369A	Network Analyzer, SNA, VNA	Vector Network Analyzer	Buy it Now Price $35,000.00
Price and Info	KEITHLEY	2810	Network Analyzer, SNA, VNA	RF Vector Signal Analyzer	Buy it Now Price $8,500.00

Contact us to Buy AGILENT 8752C used / refurbished at the Purchase Price you want.
