TEKTRONIX 2236 Buy / Purchase at the right Price
Custom-Cal has a used TEKTRONIX 2236 2 Ch 100 MHz Dual Trace Oscilloscope in stock and ready for purchase at a fair price. All units sold by Custom-Cal are provided with an applicable NIST traceable calibration/performance verification and a 90 day warranty (unless otherwise noted). With this added service, you can be confident that you are buying a fully functional unit that meets OEM specifications.

We are always willing to work with the customer on price. If you would like to buy a used TEKTRONIX 2236 but, don't see the price you want, please name your price below and we will try to find one for you to purchase.
TEKTRONIX 2236 2 Ch 100 MHz Dual Trace Oscilloscope


General description of the TEKTRONIX 2236 for sale.
The Tektronix 2236 100 MHz 2-Ch Dual Trace Oscilloscope has a counter/ timer/ DMM, integrated into the scope's vertical, horizontal and trigger systems. The Tek 2236 provides easy, accurate, and versatile measurements through microprocessor-driven waveform analysis. Autoranged and autoaveraged counter/timer measurements are made on the signal triggering the A sweep, or in gated modes on the signal triggering the B sweep. Autoranged DMM measurements are made through floating DMM side inputs and up-range at 5000 counts. Channel 1 voltage measurements made on Channel 1 signal include: dc, relative dc, relative and true ac RMS voltage. Self-testing includes power-on and user interactive routines. Characteristics. Vertical System: Bandwidth (- 3dB) and Rise Time: 100 MHz and 3.5 ns, derated to 90 MHz at 2 mV/div and outside 0°C to +35°C. Bandwidth Limit: 20 MHz ± 10%. Deflection Factor: 2 mV to 5 V/div at ±2%. Step Response Aberrations: +4%, -4%, 4% p-p (5 mV to 0.5 V/div), +5%, -5%, 5% p-p (2 mV/div). Display Modes: CH 1, CH 2, CH 2 Invert, Add, Alternate, Chop (500 kHz). Common-Mode Rejection Ratio: At least 10:1 at 50 MHz for signals of 6 div or less. Maximum Input Voltage (Ac and Dc Coupled): 400 V (dc + peak ac) or 800 V (p-p to 10kHz). Channel 1/ Channel 2 Isolation: 100:1 at 50 MHz. Horizontal System: Sweep Rate: A Time Base: 0.05 /uS to 0.5 s/div in 1-2-5 sequence. 10X Mag: 5 ns/div. B Time Base: 0.05 /uS to 50 ms/div in 1-2-5 sequence. 10X Mag: 5 ns/div. Sweep Linearity: ± 5% over any two of center eight divisions. Delay Time Range: Continuously variable with 10-turn control from < 0.5 +300 ns to > 10div. Display: Monochrome CRT - 8 cm x 10 cm.

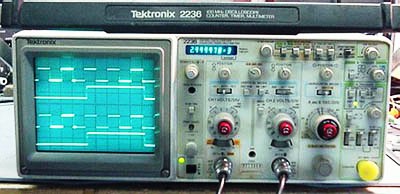

       Stock Photo

Unfortunately, the instrument you wanted to buy has recently been sold.
But, if you fill out the form below, we will get back to you with availability and price.
Please check the similar instruments available for purchase below.



Similar Instruments Available for Purchase. Please follow links for more information and price.

 ManufacturermodelInstrument TypeOEM NameStarting Price
Price and InfoAGILENT54641AOscilloscope2 Ch 350 MHz MegaZoom OscilloscopeBuy it Now Price $4,500.00
Price and InfoAGILENT54835AOscilloscope4 Ch 1 GHz Infiniium OscilloscopeBuy it Now Price $3,500.00
Price and InfoAGILENTDSO81004AOscilloscope4 Ch 10 GHz Infiniium OscilloscopeBuy it Now Price $12,500.00
Price and InfoAGILENTDSOX3034AOscilloscope4 Ch 350 MHz InfiniiVision OscilloscopeBuy it Now Price $5,720.00
Price and InfoTEKTRONIXTDS1002BOscilloscope2 Ch Digital Storage OscilloscopeBuy it Now Price $875.00
Price and InfoTEKTRONIXTDS7104Oscilloscope4 Ch 1 GHz Digital Phosphor OscilloscopeBuy it Now Price $4,000.00

Contact us to Buy TEKTRONIX 2236 used / refurbished at the Purchase Price you want.
