TEKTRONIX MSO3054 CALIBRATION and TEKTRONIX MSO3054 REPAIR


A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX MSO3054 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope?
Shop for Comparable Products on our
 used Oscilloscope page


   TEKTRONIX MSO3054   Description / Specification:   Spec Sheet

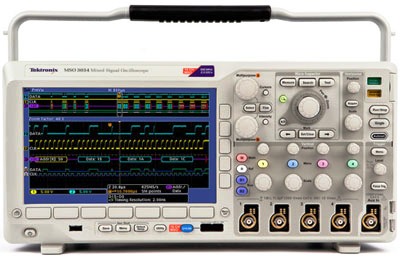

TEKTRONIX MSO3054 4+16 Ch 500 MHz Mixed Signal Oscilloscope

500 MHz Mixed Signal Oscilloscope, 4 + 16 channel. Maximum Sample Rate: 1.0 GS/s. Calculated Rise Time: 700 ps. Hardware Bandwidth Limits: 20, 150 MHz. Input Coupling: AC, DC, GND. Input Impedance: 1 M-Ohm ±1%, 75 ohm ±1%, 50 ohm ±1%. Input Sensitivity Range 1 M-ohm: 1 mV/div to 10 V/div. Input Sensitivity Range, 75 ohm, 50 ohm: 1 mV/div to 1 V/div. Vertical Resolution: 8 bits(11 bits with Hi Res). Maximum Input Voltage, 1 M-Ohm: 300 VRMS with peaks <= ±450 V. DC Gain Accuracy: ±1.5% for 5 mV/div and above, ±2.0% for 2 mV/div, ±2.5% for 1 mV/div. Vertical System Digital Channels; Input Channels: 16 Digital (D15 to D0). Thresholds: Threshold per set of 8 channels. Threshold Selections: TTL, CMOS, ECL, PECL, User Defined. User-defined Threshold Range: -15 V to +25 V. Maximum Input Voltage: -20 V to +30 V. Threshold Accuracy: ±(100 mV +3% of threshold setting). Maximum Input Dynamic Range: 50 Vpk-pk (threshold setting dependent). Minimum Voltage Swing: 500 mVpk-pk. Input Impedance: 101 k ohm. Probe Loading: 8 pF. Vertical Resolution: 1 bit. Horizontal System Digital Channels; Maximum Sample Rate (Main, all channels): 500 MS/s (2 ns resolution). Maximum Record Length (Main, all channels): 5 Mpoints. Maximum Sample Rate (MagniVu, all channels): 8.25 GS/s (121.2 ps resolution). Maximum Record Length (MagniVu, all channels): 10 kpoints centered on the trigger. Minimum Detectable Pulse Width: 2.0 ns. Channel-to-Channel Skew: 500 ps typical. Horizontal System Analog Channels; Maximum Sample Rate (Main, all channels): 500 MS/s (2 ns resolution). Maximum Record Length (Main, all channels): 5 Mpoints. Maximum Duration of Time Captured at Highest Sample Rate (all channels): 2 ms. Time-base Range (s/div): 1 ns to 1000 s. Time-base Delay Time Range: -10 divisions to 5000 s. Channel-to-Channel Deskew Range: ±100 ns. Time-base Accuracy: ±10 ppm over any >=1 ms interval. Display Type: 9 in. (228.6 mm) wide format liquid crystal TFT color display.





Standard Calibration $190.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX MSO3054. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

dBm
dBm (sometimes dBmW) is an abbreviation for the power ratio in decibels (dB) of the measured power referenced to one milliwatt (mW). Zero dBm equals one milliwatt. A 3 dB increase represents roughly doubling the power, a 3 dB decrease, the power is reduced by about one half.

Millimeter-wave
Millimeter-wave is a term that generally refers to frequencies of 26.5 GHz and above. That is where signal wavelengths fall below approximately 10 mm, and thus the terminology changes from centimeters to millimeters.

Power Repeatability
Power Repeatability is the random uncertainty in reproducing the power level after changing and re-setting the power level. The power repeatability is ± half the span (in dB) between the highest and lowest actual power. Note: - The long-term power repeatability can be obtained by taken the power repeatability and power stability into account.

Stability
Stability is the extent to which a specified property, characteristic, or parameter of a substance, device, or apparatus, remains fixed with the passage of time or with varying environmental conditions.


Please contact us for your TEKTRONIX MSO3054 CALIBRATION and/or TEKTRONIX MSO3054 4+16 Ch 500 MHz Mixed Signal Oscilloscope REPAIR
