TEKTRONIX DPO70404 CALIBRATION and TEKTRONIX DPO70404 REPAIR


A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX DPO70404 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope?
Shop for Comparable Products on our
 used Oscilloscope page


   TEKTRONIX DPO70404   Description / Specification:   Spec Sheet

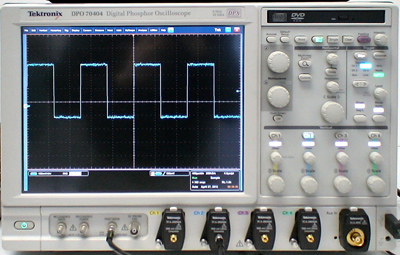

TEKTRONIX DPO70404 4 Ch 4 GHz Real-time Digital Phosphor Oscilloscope

The Tektronix DPO70404 4 GHz Real-time Digital Phosphor Oscilloscope is used for verifying, characterizing, debugging, and testing sophisticated electronic designs. The user-selectable DSP filter on each channel provides magnitude and phase correction plus bandwidth extension to 20 GHz for more accurate representation of extremely fast signals. The DSP filter on each channel can also be switched off to take advantage of true analog bandwidth for applications needed the highest available raw data capture. High sample rate on all models, on all channels, to capture more signal details (transients, imperfections, fast edges). Specifications. Input Channels: 4. Bandwidth (user selectable DSP enhance): 4 GHz. Rise Time 10% to 90% (typical): 93 ps. Rise Time 20% to 80% (typical): 65 ps. Hardware Analog Bandwidth (-3 dB): 4 GHz (typical). DC Gain Accuracy: ±2% (of reading). Input Coupling: DC (50 ohm), GND. Input Impedance: 50 ohm ±1.5%, 1 Mohm with TCA-1MEG adapter. Input Sensitivity 8 GHz and below: 10 mV/div to 1 V/div (100 mV to 10 V full scale). Vertical Resolution: 8 bit (11 bit with averaging). Time Base Range: 20 ps/div to 1000 s/div. Time Base Delay Time Range: -5.0 ks to 1.0 ks. Trigger Jitter (RMS): 1 psRMS (typical) with enhanced triggering OFF, <100 fsRMS with enhanced triggering ON. Time Base Accuracy: ±1.5 ppm initial accuracy, aging <1 ppm per year. Sample Rates Real-time mode 1, 2, 3, or 4 channel (max): 25 GS/s. Maximum Record Length per Channel With Standard Configuration: 10 M on all four channels. Maximum Duration at Highest Real-Time Resolution: 40 ps (25 GS/s). Options. 2XL - 20 MSamples/ch. 5XL - 50 MSamples/ch. 10XL - 100 MSamples/ch. PTH - Protocol Triggering and Decoding for 8b/10b-encoded Serial Signals up to 3.125 Gbps. MTH - Mask testing for Serial Standards up to 4.25 Gbps. ASM - Advanced Event Search and Mark. LT - Waveform Limit Testing. DDRA - DDR Memory Bus Analysis. DJA - DPOJET Jitter and Eye Diagram Analysis. ET3 - Ethernet Compliance Test Software. USB - USB 2.0 Compliance Test Software only. PWR - Power Measurement and Analysis Software. HT3 - HDMI Compliance Test Software. DSPT - DisplayPort Compliance Test Solution. DVI - DVI Compliance Test Solution. PCE - PCI Express Compliance Module for RT-Eye Serial Data Compliance and Analysis Software. SST - SATA and SAS Analysis Software Module for RT-Eye Serial Data Compliance and Analysis Software. FBD - FB-DIMM Compliance Module for RT-Eye Serial Data Compliance and Analysis Software. IBA - InfiniBand Compliance Module for RT-Eye Serial Data Compliance and Analysis Software. UWB - Ultra-Wideband Spectral Analysis. UWBE - Ultra-Wideband Spectral Analysis Essentials. SVE - SignalVu Essentials, Vector Signal Analysis Software. SVP - Advanced Signal Analysis (including pulse measurements), Requires option SVE. SVM - General Purpose Modulation Analysis, Requires option SVE. SLE - Serial Data Link Analysis Essentials (no Equalization). SLA - Serial Data Link Analysis Advanced (with Equalization).





Standard Calibration $285.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX DPO70404. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Channel Bandwidth
Channel Bandwidth is the bandwidth over which power is measured. This is usually the bandwidth in which almost all of the power of a signal is contained.

Jitter
Jitter in technical terms is the deviation in or displacement of some aspect of the pulses in a high-frequency digital signal. Jitter is the time variation of a periodic signal in electronics and telecommunications, often in relation to a reference clock source. Jitter may be observed in characteristics such as the frequency of successive pulses, the signal amplitude, or phase of periodic signals. Jitter is a significant, and usually undesired, factor in the design of almost all communications links (e.g., USB, PCI-e, SATA, OC-48). In clock recovery applications it is called timing jitter.

Overshoot
Overshoot is the distortion that follows a major transition; the difference between the peak power point and the pulse-top amplitude computed as a percentage of the pulse-top amplitude.

Rise Time
Rise time refers to the time required for a signal to change from a specified low value to a specified high value, usually 10 and 90 percent of pulse-top amplitude (vertical display is linear power).


Please contact us for your TEKTRONIX DPO70404 CALIBRATION and/or TEKTRONIX DPO70404 4 Ch 4 GHz Real-time Digital Phosphor Oscilloscope REPAIR
