TEKTRONIX TDS224 REPAIR and TEKTRONIX TDS224 CALIBRATION

Custom-Cal has a high success rate in the repair of the TEKTRONIX TDS224. A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX TDS224 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope?
Shop for Comparable Products on our  used Oscilloscope page


   TEKTRONIX TDS224 (TDS 224)   Description / Specification:

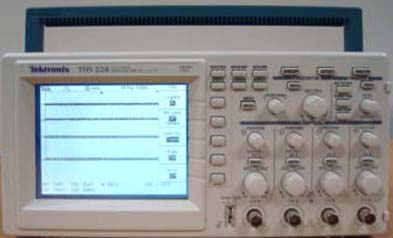

TEKTRONIX TDS224

100 MHz Digital Storage Oscilloscope. Total Channels: 4. Sample Rate: 1 GS/s on each channel. Sensitivity (with calibrated fine adjustment): 2 mV to 5 V/div (bandwidth limited to 20 MHz at 2 mV/div and 5 mV/div, in all modes, and 20 MHz at 10 mV/div in Peak Detect mode). DC Gain Accuracy: ± 3%. (± 4% at 2 mV/div and 5 mV/div). Vertical Resolution: 8 bits (256 levels over 10.24 vertical divisions). Acquisition Modes: Sample, Average, Peak Detect; High frequency and random glitch capture; captures glitches as narrow as 10 ns using acquisition hardware at all time/div settings between 5 us/div and 5 s/div. Time/Division Range: 5 ns to 5 s/div. Record Length: 2500 sample points per channel. Horizontal Accuracy: ± 0.01 %. Waveform Storage: Four 2500 point reference waveforms. Trigger Type: Edge (Rising or Falling), Video, Set to 50%. Trigger Source: CHI, CH2, CH3, CH4 and AC line. Cursor Types: Voltage, Time. Backlit LCD with adjustable multilevel contrast. GPIB





Standard Calibration $160.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX TDS224. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

dBm
dBm (sometimes dBmW) is an abbreviation for the power ratio in decibels (dB) of the measured power referenced to one milliwatt (mW). Zero dBm equals one milliwatt. A 3 dB increase represents roughly doubling the power, a 3 dB decrease, the power is reduced by about one half.

Millimeter-wave
Millimeter-wave is a term that generally refers to frequencies of 26.5 GHz and above. That is where signal wavelengths fall below approximately 10 mm, and thus the terminology changes from centimeters to millimeters.

Power Repeatability
Power Repeatability is the random uncertainty in reproducing the power level after changing and re-setting the power level. The power repeatability is ± half the span (in dB) between the highest and lowest actual power. Note: - The long-term power repeatability can be obtained by taken the power repeatability and power stability into account.

Stability
Stability is the extent to which a specified property, characteristic, or parameter of a substance, device, or apparatus, remains fixed with the passage of time or with varying environmental conditions.
