TEKTRONIX TDS5104B CALIBRATION and TEKTRONIX TDS5104B REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX TDS5104B Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope?
Shop for Comparable Products on our  used Oscilloscope page


   TEKTRONIX TDS5104B   Description / Specification:   Spec Sheet

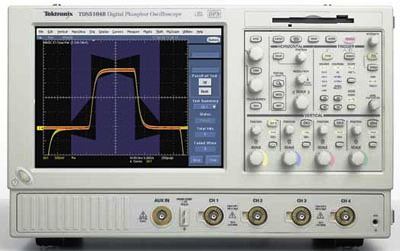

TEKTRONIX TDS5104B 4 Ch 1 GHz Digital Phosphor Oscilloscope

The Tektronix TDS5104B 1 GHz Digital Phosphor Oscilloscopes (DPO) delivers 5 GS/s real-time sample rate, up to 16 M record length, and a suite of advanced triggers, enabling you to capture and characterize even your most demanding signals. DPOs provide unmatched insight into signal behavior by displaying, storing, and analyzing complex signals in real time using three dimensions of signal information: amplitude, time, and distribution of amplitude over time. It offers a Tektronix-exclusive MyScope customizable oscilloscope user interface. MyScope is a powerful feature that allows you to build your own control windows with only the controls, features, and capabilities that you care about and are important in your job. The TDS5104B includes a complete parametric measurement system for signal characterization. Select from 53 automatic measurements using a graphical palette that logically organizes measurements into Amplitude, Time, Combination, Histogram, and Communications categories. Input Channels: 4. Analog Bandwidth (–3 dB) 5 mV/div -1 V/div: 1 GHz. Calculated Rise Time 5 mV/div (Typical): 300 ps. Hardware Bandwidth Limits: 150 MHz or 20 MHz.Input Coupling: AC, DC, GND. Input Impedance, 1 Mohm: ±1%. Input Impedance, 50 ohm: ±2.5%. Input Sensitivity, 1 Mohm: 1 mV/div to 10 V/div. Input Sensitivity, 50 ohm: 1 mV/div to 1 V/div. Vertical Resolution: 8 bits (>11 bits w/ averaging). DC Gain Accuracy: 1.5% with offset set to 0 V. Time-base Range: 200 ps/div to 1000 s/div. Time-base Delay Time Range: (s/div × 10) to 1000 s. Channel-to-Channel Deskew Range: ±75 ns. Time-base Accuracy: 15 ppm. Delta Time Measurement Accuracy: (0.06/sample rate + 15 ppm × |Reading|) RMS. Real-time Sample Rates: 1 Channel (Max) 5 GS/s, 2 Channels (Max) 2.5 GS/s, 3-4 Channels (Max) 1.25 GS/s. Maximum Record Length per Channel with Standard Memory: 16M/8M/4M. Time Resolution (Single shot): 200 ps (5 GS/s). 10.4 in. Bright Display. GPIB Controller. CD-RW Drive. Opt. 1R, Rackmount kit. Opt. SM, Communication mask testing. Opt. VNM, CAN bus decode requires ATM1 trigger module. Opt. PS1, Power bundle. Opt. CP2, TDSCPM2 – ANSI/ITU telecom pulse compliance testing software. Opt. ET3, TDSET3 – Ethernet compliance test software. Opt. J2, TDSDDM2 – Disk drive measurement software. Opt. JA3, TDSJIT3 v2.0 Advanced – Jitter and timing analysis software. Opt. JE3, TDSJIT3 v2.0 Essentials – Jitter and timing analysis software. Opt. PW3, TDSPWR3 – Power measurement software. Opt. USB, USB 2.0 compliance test software only.





Standard Calibration $160.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX TDS5104B. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

dBc
dBc (decibels relative to the carrier) is the power ratio of a signal to a carrier signal, expressed in decibels. If the dBc figure is positive, then the relative signal strength is greater than the carrier signal strength. If the dBc figure is negative, then the relative signal strength is less than carrier signal strength.

Load Regulation
Load regulation is the capability to maintain a constant voltage (or current) level on the output channel of a power supply despite changes in the supply's load (such as a change in resistance value connected across the supply output).

Power Linearity
When changing the power level and measuring the differences (in dB) between actual and displayed power levels, the power linearity is ± half the span (in dB) between the maximum and the minimum value of all differences.

Settling Time
Settling time of an output device is the time elapsed from the application of an ideal instantaneous step input to the time at which the amplifier output has entered and remained within a specified error band, usually symmetrical about the final value.

Please contact us for your TEKTRONIX TDS5104B CALIBRATION and/or TEKTRONIX TDS5104B 4 Ch 1 GHz Digital Phosphor Oscilloscope REPAIR
