NEWPORT 2832-C REPAIR and NEWPORT 2832-C CALIBRATION

Custom-Cal has a high success rate in the repair of the NEWPORT 2832-C. A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the NEWPORT 2832-C Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Optical Power Meter?
Shop for Comparable Products on our  used Optical Power Meter page or new Optical Power Meter page


   NEWPORT 2832-C (2832C)   Description / Specification:

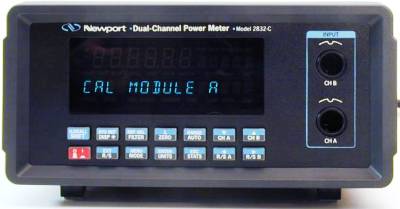

NEWPORT 2832-C Dual-Channel High-Precision Optical Power Meter

The Newport 2832-C Dual-Channel Optical Power Meter is for optical measurements that require two channels, high-precision, and fast data acquisition. Single- and dual-channel operations are supported, with channels displayed individually or simultaneously in dual-channel operation. The power sensitivity ranges from 100 fW–2W over a wavelength range of 0.19–1.8 µm. The unit is compatible with Newport’s 818 Series silicon, germanium, and indium gallium arsenide detectors, and a wide variety of accessories for measuring bare or connectorized fiber or free space light sources. Measurements can be made in W, A, dBm, dB or relative units. These may be displayed directly or as relative ratio measurements from present or stored values. Moving statistical measurements permit you to compute moving statistics for 1 to 100 measurements with Min, Max, Max-Min, Mean, and Standard Deviation. You may also select from many programming features such as sampling frequency and precision,digital and analog filtering, and data storage of up to 1000 readings per channel. Includes both RS-232C and IEEE-488 interfaces. Specifications. Display: 6-digit vacuum fluorescent. Sampling Resolution: 20,000 count <=25 Hz, 4096 count <=1 kHz. Gain Ranges: Up to 7 decades. Current Sensitivity (full-scale): 2.5 nA–2.5 mA. Resolution: 100 fA. Sampling Rate: Up to 1 kHz single-channel, Up to 500 Hz dual-channel. Bandwidth: (-3 dB) DC to 47 kHz. Analog Output: 0–2.5 V into 50 ohms. DC Accuracy: <±0.1% typical.





Standard Calibration $460.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the NEWPORT 2832-C. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Optical Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Bandwidth
Bandwidth is the difference between the upper and lower frequencies in a contiguous set of frequencies within which a fiber optic component, link or network will operate.

Extinction Ratio (ER)
Extinction Ratio is the ratio of two optical power levels, of a digital signal generated by an optical source, (example a laser diode), where P1 is the optical power level generated when the light source is "on," and P0 is the power level generated when the light source is "off." The extinction ratio may be expressed as a fraction, in dB, or as a percentage.

Optical Signal-to-noise Ratio (OSNR)
Optical Signal-to-noise ratio is the ratio between the signal power and the noise power in a given bandwidth. Most commonly a reference bandwidth of 0.1 nm is used. This bandwidth is independent from the modulation format, the frequency and the receiver. For instance a OSNR of 20dB/0.1nm could be given, even the signal of 40 GBit DPSK would not fit in this bandwidth. OSNR is measured with a Optical Spectrum Analyzer. It is generally measured at the wavelength of interest.

Repeatability
Repeatability is the variation in a number of repeated measured quantities when measurement conditions are changed and restored. The value corresponds to half the spread between the minimum and maximum value measured.

Wavelength Repeatability
Wavelength Repeatability is the random uncertainty in reproducing a wavelength after detuning and re-setting the wavelength. The wavelength repeatability is ± half the span between the maximum and the minimum value of all actual values of these wavelengths. Example test condition: uninterrupted TLS output power, constant power level, temperature within operating temperature range, coherence control off, short time span. Note: NOTE The long-term wavelength repeatability can be obtained by taken the wavelength repeatability and wavelength stability into account.

Please contact us for your NEWPORT 2832-C REPAIR and/or NEWPORT 2832-C Dual-Channel High-Precision Optical Power Meter CALIBRATION
