FLUKE 175 CALIBRATION and FLUKE 175 REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the FLUKE 175 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Multimeter DMM?
Shop for Comparable Products on our  used Multimeter DMM page


   FLUKE 175   Description / Specification:

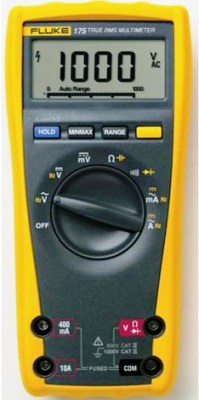

FLUKE 175 Handheld True RMS Digital Multimeter

The Fluke 175 True RMS digital multimeter gives you voltage and current measurements, 6000-count resolution, manual and automatic ranging and provide frequency, capacitance, resistance, continuity and diode measurements. Specifications. Voltage DC: Accuracy ± (0.15%+2), Max. Resolution 0.1 mV, Maximum 1000 V. Voltage AC: Accuracy ± (1.0%+3), Max. Resolution 0.1 mV, Maximum 1000 V. Current DC: Accuracy ± (1.0%+3), Max. Resolution 0.01 mA, Maximum 10 A. Current AC: Accuracy ± (1.5%+3), Max. Resolution 0.01 mA, Maximum 10 A. Resistance: Accuracy ± (0.9%+1), Max. Resolution 0.1 ohm, Maximum 50 M-ohm. Capacitance: Accuracy ± (1.2%+2), Max. Resolution 1 nF, Maximum 10,000 µF. Frequency: Accuracy ± (0.1%+1), Max. Resolution 0.01 Hz, Maximum 100 kHz.





Standard Calibration $135.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the FLUKE 175. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Available Gain
Available Gain is the ratio, at a specific frequency, of power available from the output to the power in from the source.

Decibel (dB)
A unit of measurement of power which indicates relative power. A -10 dB means a reduction in power by 10 times, -20 dB means another 10 times or 100 times overall, -30 means another 10 times or 1000 times overall and so on.

Mismatch Uncertainty
Mismatch Uncertainty is caused by re-reflections between one device (the source) and the device that follows it (the load).

Pulse Power
Pulse Power, the energy transfer rate is averaged over the pulse width. Pulse width is considered to be the time between the 50 percent risetime/falltime amplitude points. Pulse power averages out any aberrations in the pulse envelope such as overshoot or ringing.

Please contact us for your FLUKE 175 CALIBRATION and/or FLUKE 175 Handheld True RMS Digital Multimeter REPAIR
