General description of the
used AGILENT DSO81004A
for sale.

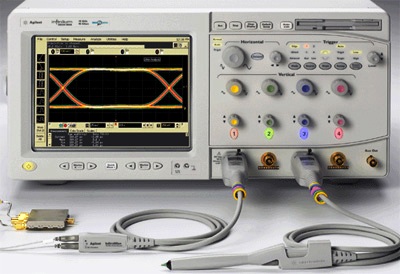

The Agilent DSO81004A 4 Ch Infiniium Oscilloscope combines unprecedented ease-of-use with high-performance digitizing oscilloscope functionality to simplify your design and analysis measurement tasks. It offers 4 channels, 20 GSa/s sampling rate on all four channels, 10 GHz bandwidth. Graphical user interface with menus, windows, dialogs, and toolbars provides easy access to dozens of configuration and analysis tools, ensuring you can set up and make the most complex measurements. Specifications. Bandwidth: 10 GHz real-time on 2 channels, 40 GSa/s. Standard acquisition memory: 0.5 Mpts on 2 channels, 0.25 Mpts on 4 channels. Optional acquisition memory: 2 Mpts on 2 channels, 1 Mpts on 4 channels. Maximum memory in equivalent-time modes: always 0.25 Mpts per channel. Rise time/fall time: 30 ps (20 - 80%), 42 ps (10 - 90%). Input impedance: 50 ohm ± 3%. Sensitivity: 1 mV/div to 1 V/div. Input coupling: DC. Vertical resolution: 8 bits, = 12 bits with averaging. Channel to channel isolation (any two channels with equal V/div settings): DC to 3 GHz: 60 dB, 3 GHz to 8 GHz: 40 dB, 8 GHz to BW: 35 dB. DC gain accuracy: ± 2% of full scale at full resolution channel scale. Maximum input voltage: ± 5 V. Main timebase range: 5 ps/div to 20 s/div real-time, 5 ps/div to 500 ns/div equivalent-time. Main timebase delay range: –200 s to 200 s real-time, –25 µs to 200 s equivalent-time. Delayed timebase range: 1 ps/div to current main time scale setting. Channel deskew: ± 25 µs range, 100 fs resolution. Time scale accuracy: ± 1 ppm pk. Maximum real-time sample rate: 40 GSa/s (2 channels simultaneously), 20 GSa/s (4 channels simultaneously). Memory depth per channel Standard: 524,288 (2 channels), 262,144 (4 channels). Trigger Sensitivity: 2.0 div p-p 0 to 5 GHz (Internal Low), 0.3 div p-p 0 to 4 GHz, 1.0 div p-p 4 to 7.5 GHz (Internal High). Level range Internal: ± 4 div from center screen or ± 4 Volts, whichever is smallest. Sweep modes: Auto, triggered, single. Options: 001: 2 M (2 channels), 1 M (4 channels) memory upgrade, 64 M (2 channels at 4 GSa/s) or 32 M (4 channels = 2 GSa/s). 002: EZJIT jitter analysis software (installed at the factory). 003: High-Speed Serial Data Analysis/Mask Testing with clock recovery and 8b/10b decoding (installed at the factory). 004: EZJIT Plus jitter analysis software (installed at the factory). 005: Noise reduction software (installed at the factory). 006: My Infiniium Integration Package (installed at the factory). 017: 20 Gb removable hard disk drive. Replaces internal hard disk with a removable hard disk. Order the N5390A for additional hard disk drive cartridges.
|
