Custom-Cal has repaired over 300 86120’s with a success rate of over 99%. We also have both 86120B and 86120C units in stock for immediate delivery, whether for purchase or rental. Our typical repair time is less than 5 business days as we have most replacement parts in stock. We can also handle expedited deliveries upon request.
Instrument Error Codes:
E1 ERROR 1 BAD CHECKSUM FROM MOTOR
E2 ERROR 2 MOTOR COMMUNICATION PROBLEM
E3 ERROR 3 MOTOR NOT MOVING
E4 ERROR 4 MOTOR INDEX PULSE NOT FOUND
E5 ERROR 5 MOTOR CHIP SET INIT FAILED
E6 ERROR 6 MOTOR COMMUTATION FAILURE
E7 ERROR 7 MOTOR NOT SETTLED
E8 ERROR 8 MOTOR DID NOT STOP
E9 ERROR 9 MOTOR MOTION ERROR
E10 ERROR 10 MOTOR POSITION LIMIT FAILED
E11 ERROR 11 MOTOR POSITION WRAP FAILED
E12 ERROR 12 POWER LEVEL TOO HIGH
E13 ERROR 13 DATA DOWNLOAD PROBLEM
E14 ERROR 14 DATA ACQUISITION PROBLEM
E15 ERROR 15 MAX NUMBER OF SIGNALS FOUND
E16 ERROR 16 MOTOR INTERRUPT RECEIVED
E17 ERROR 17 ROM BYTE UNERASED
E18 ERROR 18 ROM WRITE OPERATION FAILED
E19 ERROR 19 ROM DEFECTIVE
E20 ERROR 20 ROM DATA INVALID
E21 ERROR 21 ROM VERSION INCOMPATIBLE
E22 ERROR 22 ROM POLLING LIMITED OUT
E23 ERROR 23 INPUT OUT OF RANGE
E24 ERROR 24 BAD CAL ROM DATA
E25 ERROR 25 BAD CAL ROM DATA
E26 ERROR 26 BAD CAL ROM DATA
E27 ERROR 27 BAD CAL ROM DATA
E28 ERROR 28 BAD CAL ROM DATA
E29 ERROR 29 BAD CAL ROM DATA
E30 ERROR 30 NVSRAM WRITE OPERATION FAILED
E31 ERROR 31 SOFTWARE INITIALIZATION FAIL
E32 ERROR 32 HARDWARE INITIALIZATION FAIL
E33 ERROR 33 INITIALIZATION TIMEOUT
E34 ERROR 34 BATTERY FAILED
E36 ERROR 36 TOO MANY ERRORS
E37 ERROR 37 FUNCTION NOT YET IMPLEMENTED
E38 ERROR 38 PRINTER OFF LINE
E39 ERROR 39 PRINTER OUT OF PAPER
E40 ERROR 40 PRINTER ERROR DETECTED
E41 ERROR 41 PRINTER TIMED OUT
E42 ERROR 42 PRINTOUT WAS ABORTED
E43 ERROR 43 NOT ALLOWED IN FABRY PEROT
E44 ERROR 44 NOT ALLOWED IN S/N
E45 ERROR 45 UNKNOWN KEYPRESS
E46 ERROR 46 NUM LINES < NUM REFS
E47 ERROR 47 NUM LINES > NUM REFS
E48 ERROR 48 NO REFERENCE SIGNAL
E49 ERROR 49 GAIN RANGING ERROR
E50 ERROR 50 INCOMPATIBLE HARDWARE
E51 ERROR 51 UNKNOWN ERROR

Options:
010 Delete FC/PC connector
011 Diamond HMS-10 connector interface (B/C only)
013 DIN 47256 connector interface (B/C only)
014 ST connector interface (B/C only)
017 SC connector interface (B/C only)
022 Replace flat physical contact interface with angled physical contact interface
412 Add 10 dB external attenuator (FC/PC interface connector)
417 FC/APC Connector (requires Option 022) (B/C only)

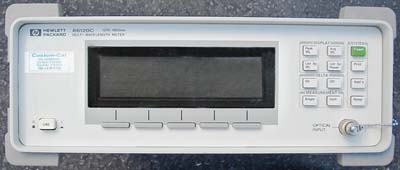

Description of Model
1270 nm to 1650 nm, Multi-Wavelength Meter.
±2 ppm wavelength accuracy and 10 GHz wavelength resolution.
+18 dBm Maximum safe input level (sum of all lines)

Measure any of the following parameters:
• Up to 200 laser lines simultaneously
• Wavelengths and powers
• Average wavelength
• Total optical power
• Laser line separation
• Laser drift (wavelength and power)
• Signal- to-noise ratios
• Fabry- Perot lasers
