AEROFLEX-IFR 2026 CALIBRATION and AEROFLEX-IFR 2026 REPAIR


A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the AEROFLEX-IFR 2026 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Signal Generator?
Shop for Comparable Products on our
 used Signal Generator page


   AEROFLEX-IFR 2026   Description / Specification:

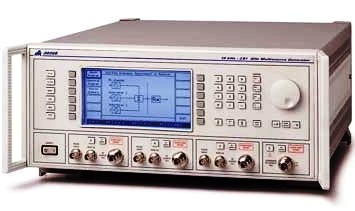

AEROFLEX-IFR 2026 2.4 GHz MultiSource Synthesized Signal Generator

The IFR 2026 is a 10 kHz to 2.4 GHz MultiSource Synthesized Signal Generator which offers two RF signal generators in one box with a third source available as an option. Each source is a fully functional RF signal generator with AM, FM, phi-M, 2FSK, 4FSK and pulse modulation capability. The use of a built in combiner, switches and cables eliminates many of the measurement uncertainties introduced by connecting together separate signal generators. The 2026 thereby guarantees the level of intermodulation products introduced during amplifier or receiver intermodulation testing. The 2026 allows one of the RF sources to be frequency swept with user defined start, stop, and step values to reduce the amount of operator time or GPIB overhead. By enabling the coupling facility, sweeping one source will simultaneously sweep the other internal RF sources to allow automated swept measurements on frequency conversion devices to be made. Specifications. Carrier Frequency Range: 10 kHz to 2.4 GHz with a resolution of 1 Hz. RF Output Range: Individual outputs, -137 dBm to +24 dBm; Combiner outputs, -137 dBm to +4 dBm (settable to +10 dBm). RF Maximum output is reduced by 5 dB when pulse modulation is selected and/or by up to 6 dB when AM is selected dependent upon AM depth. Resolution: 0.1 dB. Harmonics Individual outputs: Typically better than -30 dBc for RF level up to +6 dBm, typically better than -25 dBc for RF levels up to +18 dBm (+14 dBm above 1.2 GHz). Harmonics Combined output: Typically better than -30 dBc for RF level up to -14 dBm, typically better than -25 dBc for RF levels up to +4 dBm. (0 dBm above 1.2 GHz), Harmonics unspecified below 1 MHz. Modulation Oscillator Frequency range: 0.01 Hz to 20 kHz with a resolution of 0.01 Hz. External Modulation: Input on the front panel Modulation Input/Output connector. The modulation is calibrated with 1.414 V peak (1V RMS sine wave) applied. Input impedance is 100 k-ohm nominal. Maximum safe input ±15 V. Options. Option 1, Add third internal source. Option 3, High stability frequency standard. Option 4, Rear panel outputs.





Standard Calibration $350.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the AEROFLEX-IFR 2026. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Channel Bandwidth
Channel Bandwidth is the bandwidth over which power is measured. This is usually the bandwidth in which almost all of the power of a signal is contained.

Jitter
Jitter in technical terms is the deviation in or displacement of some aspect of the pulses in a high-frequency digital signal. Jitter is the time variation of a periodic signal in electronics and telecommunications, often in relation to a reference clock source. Jitter may be observed in characteristics such as the frequency of successive pulses, the signal amplitude, or phase of periodic signals. Jitter is a significant, and usually undesired, factor in the design of almost all communications links (e.g., USB, PCI-e, SATA, OC-48). In clock recovery applications it is called timing jitter.

Overshoot
Overshoot is the distortion that follows a major transition; the difference between the peak power point and the pulse-top amplitude computed as a percentage of the pulse-top amplitude.

Rise Time
Rise time refers to the time required for a signal to change from a specified low value to a specified high value, usually 10 and 90 percent of pulse-top amplitude (vertical display is linear power).


Please contact us for your AEROFLEX-IFR 2026 CALIBRATION and/or AEROFLEX-IFR 2026 2.4 GHz MultiSource Synthesized Signal Generator REPAIR
