AEROFLEX-IFR 1900-5 CALIBRATION and AEROFLEX-IFR 1900-5 REPAIR


A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the AEROFLEX-IFR 1900-5 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Communication Analyzer?
Shop for Comparable Products on our
 used Communication Analyzer page or new Communication Analyzer page


   AEROFLEX-IFR 1900-5   Description / Specification:

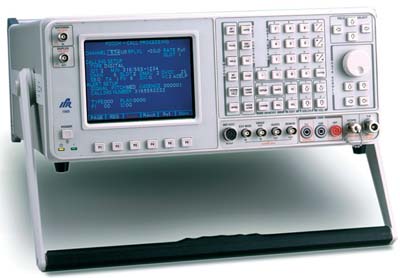

AEROFLEX-IFR 1900-5 ANSI-136 Digital PCS Radio Test Set

The Aeroflex-IFR 1900-5 CSA ANSI-136 Digital PCS Radio Test Set is a high performance dual-band, dual-mode analyzer from IFR for the ANSI-136 digital cellular standard. The 1900-5 CSA is the standard for type certification of TDMA phones for CTIA. With advanced test features such as Circuit Switched Data Radio Link Protocol, Discontinuous Transmission (DTX) testing and multi-slot DCCH capability, the 1900-5 CSA is the foremost standard in testing TDMA phones to the latest ANSI-136 standard. Designed for both dual mode mobiles and base station testing, the 1900-5 CSA provides features no other test system offers. Fully equipped with a 2GHz spectrum analyzer and AM/FM test functions, the 1900-5 CSA is a full features communications service monitor. With its integrated front panel features, the 1900-5 CSA allows easy access and manipulation of both layer 2 and layer 3 message types and information elements. Through constant updates to the ANSI- 136 standard, the 1900-5 CSA allows phone and base station designers and verification test engineers the ability to accurately test the latest phones for proper performance against the standard. The 1900-5 CSA's test macro language allows for extended test functions and automated test routines. Specifications. RF Signal Generator (T/R) and Duplex Connector Frequency Range: 10 MHz to 2010 MHz. Resolution: 100 Hz. Range: -127 dBm to -10 dBm into 50 ohm (T/R Connector: -30 dBm maximum with reverse power present). Resolution: 0.1 dB. Accuracy: ± 1.5 dB (>= -110 dBm). Modulation Level Range: -30 dBm to +25 dBm into 50 ohm. Residual FM: <50 Hz RMS. SSB Phase Noise: <-90 dBc/Hz (20 kHz Offset) @ <1 GHz (1000 MHz). Receiver Frequency Range: 10 MHz to 2010 MHz. Sensitivity: <-80 for 10 dB SINAD (1 kHz rate, 6 kHz Dev, FM 2, ANT Input Port). Display: 3.8 in. wide, 3.4 in. high Color, Active Matrix LCD. Options. OPT2, -40 dB Low Power Meter Calibration. OPT3, Circuit Switched Data Option. (USA Only). OPT4, Autocell-882/884 (Ericsson). OPT5, Nortel Base Station Test Software. OPT5A, Upgrade to the above. OPT7, DCCH Capture For F-BCCH, E-BCCH. OPT8, Firmware Ver. 4.4 for SBCCH. OPT9, Autocell-Series II (Lucent Series II).





Standard Calibration $590.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the AEROFLEX-IFR 1900-5. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Communication Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Data Rate
Data Rate is the maximum number of bits of information which can be transmitted per second, as in a data transmission link. Typically expressed as megabits per second (Mbps).

Optical Signal-to-noise Ratio (OSNR)
Optical Signal-to-noise ratio is the ratio between the signal power and the noise power in a given bandwidth. Most commonly a reference bandwidth of 0.1 nm is used. This bandwidth is independent from the modulation format, the frequency and the receiver. For instance a OSNR of 20dB/0.1nm could be given, even the signal of 40 GBit DPSK would not fit in this bandwidth. OSNR is measured with a Optical Spectrum Analyzer. It is generally measured at the wavelength of interest.

SONET
Synchronous Optical NETwork (SONET) is a fiber-optic transmission system for high-speed digital traffic. Employed by telephone companies and common carriers, speeds range from 51 Mbps to 40 Gbps. SONET is an intelligent system that provides advanced network management and a standard optical interface. Specified in the Broadband ISDN (B-ISDN) standard, SONET backbones are widely used to aggregate T1 and T3 lines. The European counterpart to SONET is the Synchronous Digital Hierarchy, and the term "SONET/SDH" is widely used when referring to SONET


Please contact us for your AEROFLEX-IFR 1900-5 CALIBRATION and/or AEROFLEX-IFR 1900-5 ANSI-136 Digital PCS Radio Test Set REPAIR
