AEROFLEX-IFR 1900CSA CALIBRATION and AEROFLEX-IFR 1900CSA REPAIR


A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the AEROFLEX-IFR 1900CSA Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Communication Analyzer?
Shop for Comparable Products on our
 used Communication Analyzer page or new Communication Analyzer page


   AEROFLEX-IFR 1900CSA   Description / Specification:

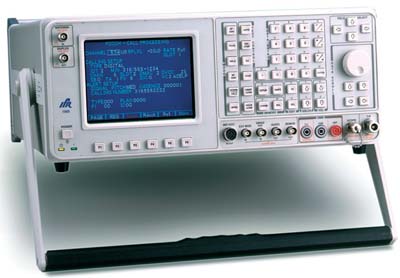

AEROFLEX-IFR 1900CSA UWC-136 Digital PCS Radio Test Set

The IFR-1900 CSA UWC-136 Digital PCS Radio Test Set provides you with a test solution for TINEIA-136 analysis, including critical adjacent power measurements and power measurements down to -40 dBm, which allows the user to test the base station without taking it off-line. It is capable of performing the critical dual -mode analog/digital authentication and protocol compliance tests for TINEIA-136 dual mode mobiles. As for flexibility, the IFR-1900 CSA provides the capability to perform both mobile and base station conformance testing. And with the VSELP and ACELP vocoder technology as standard features, the IFR-1900 CSA can handle today's latest technology. The IFR-1900 CSA comes with a wide array of application software options. The AC1036 Protocol Conformance Test Software provides an excellent way to verify software conformance of TINEIA-136 mobiles. Other applications software supports automated tests for the most widely used base station applications. The IFR-1900 CSA gives you full frequency domain analysis to 2 GHz with a fully featured spectrum analyzer and tracking generator built-in. The IFR-1900 CSA also offers a full complement of standard service monitor features including a full span digitized oscilloscope to 1 MHz, DVM and SINAD functions, frequency and channel tables, selectable IF filters, and a wide variety of displays. Specifications. RF Signal Generator (T/R) and Duplex Connector Frequency Range: 10 MHz to 2010 MHz. Resolution: 100 Hz. Range: -127 dBm to -10 dBm into 50 ohm (T/R Connector: -30 dBm maximum with reverse power present). Resolution: 0.1 dB. Accuracy: ± 1.5 dB (>= -110 dBm). Modulation Level Range: -30 dBm to +25 dBm into 50 ohm. Generator IF Output Frequency Range: 88 MHz to 90 MHz. Residual FM: <10 Hz RMS. SSB Phase Noise: <-94 dBc/Hz (20 kHz Offset). Receiver Frequency Range: 10 MHz to 2010 MHz. Sensitivity: <-80 for 10 dB SINAD (1 kHz rate, 6 kHz Dev, FM 2, ANT Input Port).





Standard Calibration $590.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the AEROFLEX-IFR 1900CSA. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Communication Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Bandwidth
Bandwidth is the difference between the upper and lower frequencies in a contiguous set of frequencies within which a fiber optic component, link or network will operate.

Multimode Fiber
Multimode Fiber has a large core (almost always 62.5 microns - a micron is one one millionth of a meter - but sometimes 50 microns) and is used with LED sources at wavelengths of 850 and 1300 nm for short distance, lower speed networks like LANs. Both multimode and singlemode fiber have an outside diameter of 125 microns - about 5 thousandths of an inch - just slightly larger than a human hair.

SDH
Synchronous Digital Hierarchy (SDH) is an international digital telecommunications network hierarchy which standardises transmission around the bit rate of 51.84 megabits per second, which is also called STS-1. Multiples of this bit rate comprise higher bit rate streams. Thus STS-3 is 3 times STS-1, STS-12 is 12 times STS-1, and so on. STS-3 is the lowest bit rate expected to carry ATM traffic, and is also referred to as STM-1 (Synchronous Transport Module-Level 1). The SDH specifies how payload data is framed and transported synchronously across optical fibre transmission links without requiring all the links and nodes to have the same synchronized clock for data transmission and recovery.


Please contact us for your AEROFLEX-IFR 1900CSA CALIBRATION and/or AEROFLEX-IFR 1900CSA UWC-136 Digital PCS Radio Test Set REPAIR
