KEITHLEY 197 REPAIR and KEITHLEY 197 CALIBRATION


Custom-Cal has a high success rate in the repair of the KEITHLEY 197. A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the KEITHLEY 197 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Multimeter DMM?
Shop for Comparable Products on our
 used Multimeter DMM page


   KEITHLEY 197   Description / Specification:

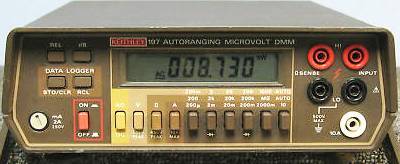

KEITHLEY 197 Autoranging µV Digital Multimeter

The Keithley 197 combines 5 1/2 -digit resolution (on a 220,000-count display) with 1 uV, 1 nA, 1 m-ohm sensitivity. Basic dcV accuracy is 0.011 %. The 197 also has extended performance features. Measure voltage over 9 decades from 1 uV to 1000V. Input resistance on the two lowest voltage ranges exceeds 1 G-ohm. TRMS ac measurements can be made to 100kHz. Make 2- or 4-terminal ohms measurements over 11 decades from 1 m-ohm to 220 M-ohm. Six current ranges measure from 1 nA to 10 A. The microprocessor-based 197 is loaded with smart features . Display annunciators indicate the measurement mode and units. Autoranging on V, ohms, and dB automatically displays maximum resolution. Audio and communication circuit analysis is easy with direct-reading dB measurements referenced to 600 ohm. Resolution is 0.01 dB above 1 mV. Pushbutton relative reference (REL) nulls out or zeros on-range readings. The DATA LOGGER stores up to 100 readings at 6 automatic rates from 3 per second to 1 per hour, or manually at the touch of a button. Specifications. DC Volts (range \ resolution): 200 mV \ 1 uV, 2 V \ 10 uV, 20 V \ 100 uV, 200 V \ 1 mV, 1000 V \ 10 mV. TRMS AC Volts Ranges (20 Hz to 100 kHz): 200 mV, 2V-200V, 750 V. DC Amps (range \ resolution): 200 uA \ 1 nV, 2 mA \ 10 nA, 20 mA \ 100 nA, 200 mA \ 1 uA, 2000 mA \ 10 uA, 10A, 100 uA. TRMS AC Amps Ranges (20 Hz to 30 kHz): 200 uA - 20 mA, 200 mA, 2000 mA, 10 A. Ohms (range \ resolution): 200 ohm \ 1 m-ohm, 2 k-ohm \ 10 m-ohm, 20 k-ohm \ 100 m-ohm, 200 k-ohm \ 1 ohm, 2 M-ohm \ 10 ohm, 20 M-ohm \ 100 ohm, 200 M-ohm \ 10 k-ohm. Display: ±220,000 count LCD, 0.45 in. height; polarity, function, range, and status indication.





Standard Calibration $80.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the KEITHLEY 197. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Channel Bandwidth
Channel Bandwidth is the bandwidth over which power is measured. This is usually the bandwidth in which almost all of the power of a signal is contained.

Jitter
Jitter in technical terms is the deviation in or displacement of some aspect of the pulses in a high-frequency digital signal. Jitter is the time variation of a periodic signal in electronics and telecommunications, often in relation to a reference clock source. Jitter may be observed in characteristics such as the frequency of successive pulses, the signal amplitude, or phase of periodic signals. Jitter is a significant, and usually undesired, factor in the design of almost all communications links (e.g., USB, PCI-e, SATA, OC-48). In clock recovery applications it is called timing jitter.

Overshoot
Overshoot is the distortion that follows a major transition; the difference between the peak power point and the pulse-top amplitude computed as a percentage of the pulse-top amplitude.

Rise Time
Rise time refers to the time required for a signal to change from a specified low value to a specified high value, usually 10 and 90 percent of pulse-top amplitude (vertical display is linear power).


Please contact us for your KEITHLEY 197 REPAIR and/or KEITHLEY 197 Autoranging µV Digital Multimeter CALIBRATION
