KEITHLEY 224 CALIBRATION and KEITHLEY 224 REPAIR


A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the KEITHLEY 224 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another DC Power Supply?
Shop for Comparable Products on our
 used DC Power Supply page


   KEITHLEY 224   Description / Specification:

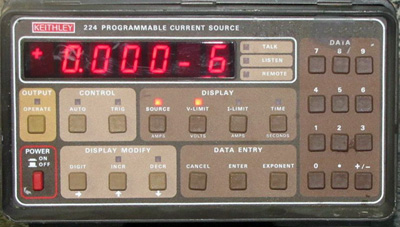

KEITHLEY 224 Programmable Current Source

Programmable Current Source: Display: 0.5 in LED digits, 4Tone-digit signed mantissa, 1-digit signed exponent. Maximum Allowable Common Mode Voltage (Output or Output Common to Chassis): 250 V rms, DC to 60 Hz. Increment/Decrement: automatic, manual or trigger modes. Range of Dwell Times: 50 ms to 999.9 s. Output Load: Output load must be non-inductive. External Trigger: TTL-compatible External Trigger Input and Output. Output Connections: Teflon® insulated 2-lug triax connector (specialty connector 30JR121-1) for output; five way binding posts for GUARD, OUTPUT COMMON and CHASSIS GROUND; BNC (chassis isolated) connectors for EXTERNAL TRIGGER INPUT and OUTPUT. All connections on rear panel





Standard Calibration $185.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the KEITHLEY 224. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

dBm
dBm (sometimes dBmW) is an abbreviation for the power ratio in decibels (dB) of the measured power referenced to one milliwatt (mW). Zero dBm equals one milliwatt. A 3 dB increase represents roughly doubling the power, a 3 dB decrease, the power is reduced by about one half.

Millimeter-wave
Millimeter-wave is a term that generally refers to frequencies of 26.5 GHz and above. That is where signal wavelengths fall below approximately 10 mm, and thus the terminology changes from centimeters to millimeters.

Power Repeatability
Power Repeatability is the random uncertainty in reproducing the power level after changing and re-setting the power level. The power repeatability is ┬▒ half the span (in dB) between the highest and lowest actual power. Note: - The long-term power repeatability can be obtained by taken the power repeatability and power stability into account.

Stability
Stability is the extent to which a specified property, characteristic, or parameter of a substance, device, or apparatus, remains fixed with the passage of time or with varying environmental conditions.


Please contact us for your KEITHLEY 224 CALIBRATION and/or KEITHLEY 224 Programmable Current Source REPAIR
