KEITHLEY 230 CALIBRATION and KEITHLEY 230 REPAIR


A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the KEITHLEY 230 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another DC Power Supply?
Shop for Comparable Products on our
 used DC Power Supply page


   KEITHLEY 230   Description / Specification:

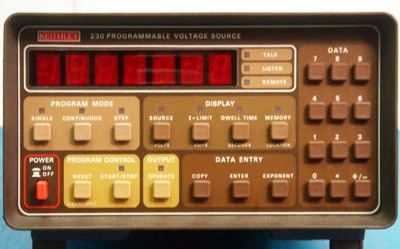

KEITHLEY 230 Programmable Voltage Source

The Keithley 230 Programmable Voltage Source incorporates a 100-step, programmable memory buffer, useful in applications where either a fixed number of outputs is repeated or a complex waveform of discrete steps must be generated. It has a ±50µV to ±101VDC programmable output. Up to ±100mA programmable current limit. Up to 4 1/2 digit resolution. GPIB.The Programmable Voltage Source has a voltage range from 199.95mVDC to 101VDC with three selectable current limits allowing the user to tailor the current limit from 2mA to 20mA to 100mA. It can be used with any measurement system that uses the IEEE-488 interface bus. Specifications. Maximum current limit: ±100mA (–0, +20%). Selectable current limit: ±100mA, ±20mA, ±2mA (–0, +20%). line regulation: <0.01% for AC power line changes within specified limits. Noise: (150µV + 50ppm range) p-p, 0.1Hz to 300Hz; 5mV p-p, 0.1Hz to 300kHz. Specification applies for local sensing only, typical. Response time: <3ms to within 0.1% of programmed change for Current Limit of at least 20mA. Transient recovery time: <3ms to rated accuracy for Current Limit of at least 20mA.





Standard Calibration $185.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the KEITHLEY 230. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

dBc
dBc (decibels relative to the carrier) is the power ratio of a signal to a carrier signal, expressed in decibels. If the dBc figure is positive, then the relative signal strength is greater than the carrier signal strength. If the dBc figure is negative, then the relative signal strength is less than carrier signal strength.

Load Regulation
Load regulation is the capability to maintain a constant voltage (or current) level on the output channel of a power supply despite changes in the supply's load (such as a change in resistance value connected across the supply output).

Power Linearity
When changing the power level and measuring the differences (in dB) between actual and displayed power levels, the power linearity is ± half the span (in dB) between the maximum and the minimum value of all differences.

Settling Time
Settling time of an output device is the time elapsed from the application of an ideal instantaneous step input to the time at which the amplifier output has entered and remained within a specified error band, usually symmetrical about the final value.


Please contact us for your KEITHLEY 230 CALIBRATION and/or KEITHLEY 230 Programmable Voltage Source REPAIR
