KEITHLEY 2400 REPAIR and KEITHLEY 2400 CALIBRATION


Custom-Cal has a high success rate in the repair of the KEITHLEY 2400. A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the KEITHLEY 2400 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another General Meter?
Shop for Comparable Products on our
 used General Meter page


   KEITHLEY 2400   Description / Specification:

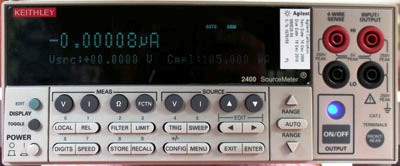

KEITHLEY 2400 210 V General Purpose Source Meter w/ Measurements

The Keithley 2400 SourceMeter combines a precise, low-noise, highly stable DC power supply with a low-noise, highly repeatable, high-impedance multimeter. It has 0.012% basic accuracy with 5½-digit resolution. At 5½ digits, the SourceMeter delivers 520 readings/second over the IEEE-488 bus. At 4½ digits, it can read up to 2000 readings/second into its internal buffer. The unit has broad source and measurement ranges: Source voltage from 5µV to 210V; measure voltage from 1µV to 211V. Capabilities. Source voltage from 5µV to 210V; measure voltage from 1µV to 211V. Source current from 50pA to 1.05A; measure current from 10pA to 1.055A. Measure resistance from 100µohm (<100µohm in manual ohms) to 211Mohm. Maximum source power is 22W. Concurrent measurements of all three functions over the remote interface. Source-measure sweep capabilities (linear and logarithmic staircase sweeps, source sweep list of up to 2500 points, memory sweep of up to 100 instrument setups). 6-wire ohm measurement with programmable I-source or V-source with V or I clamp. 4-quadrant source and sink operation. Up to 12 stages of limit testing with a built-in comparator for pass/fail testing. Digital I/O for stand-alone binning operations or interface to component handler. Programming language and remote interfaces. The SourceMeter uses the SCPI programming language and two remote interface ports (IEEE-488/GPIB and RS-232C).





Standard Calibration $295.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the KEITHLEY 2400. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Channel Bandwidth
Channel Bandwidth is the bandwidth over which power is measured. This is usually the bandwidth in which almost all of the power of a signal is contained.

Jitter
Jitter in technical terms is the deviation in or displacement of some aspect of the pulses in a high-frequency digital signal. Jitter is the time variation of a periodic signal in electronics and telecommunications, often in relation to a reference clock source. Jitter may be observed in characteristics such as the frequency of successive pulses, the signal amplitude, or phase of periodic signals. Jitter is a significant, and usually undesired, factor in the design of almost all communications links (e.g., USB, PCI-e, SATA, OC-48). In clock recovery applications it is called timing jitter.

Overshoot
Overshoot is the distortion that follows a major transition; the difference between the peak power point and the pulse-top amplitude computed as a percentage of the pulse-top amplitude.

Rise Time
Rise time refers to the time required for a signal to change from a specified low value to a specified high value, usually 10 and 90 percent of pulse-top amplitude (vertical display is linear power).


Please contact us for your KEITHLEY 2400 REPAIR and/or KEITHLEY 2400 210 V General Purpose Source Meter w/ Measurements CALIBRATION
