KEITHLEY 2420 REPAIR and KEITHLEY 2420 CALIBRATION


Custom-Cal has a high success rate in the repair of the KEITHLEY 2420. A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the KEITHLEY 2420 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another General Meter?
Shop for Comparable Products on our
 used General Meter page


   KEITHLEY 2420   Description / Specification:

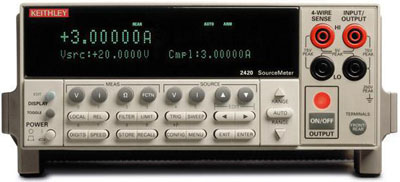

KEITHLEY 2420 High Current SourceMeter w/ Measurements

The Keithley 2420 High Current SourceMeter is a 60W instrument designed to source and measure voltage from ± 1 uV to ±60V and current from ±100 pA to ±3A. Production test applications for the Model 2420 include resistors and resistor network devices that must be tested at higher current levels, thermistors, solar cells, batteries, and high current or medium power diodes, including switching and Schottky diodes. The Model 2420 is also suitable for I DDQ testing of CMOS integrated circuits and monitoring the current consumption of battery-powered medical devices such as pacemakers. SourceMeter units can make standard 4-wire, split Kelvin, and 6-wire guarded ohms measurements, and can be configured for either the constant current or constant voltage method. 0.012% basic accuracy with 5 1/2 digit resolution.





Standard Calibration $240.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the KEITHLEY 2420. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Channel Bandwidth
Channel Bandwidth is the bandwidth over which power is measured. This is usually the bandwidth in which almost all of the power of a signal is contained.

Jitter
Jitter in technical terms is the deviation in or displacement of some aspect of the pulses in a high-frequency digital signal. Jitter is the time variation of a periodic signal in electronics and telecommunications, often in relation to a reference clock source. Jitter may be observed in characteristics such as the frequency of successive pulses, the signal amplitude, or phase of periodic signals. Jitter is a significant, and usually undesired, factor in the design of almost all communications links (e.g., USB, PCI-e, SATA, OC-48). In clock recovery applications it is called timing jitter.

Overshoot
Overshoot is the distortion that follows a major transition; the difference between the peak power point and the pulse-top amplitude computed as a percentage of the pulse-top amplitude.

Rise Time
Rise time refers to the time required for a signal to change from a specified low value to a specified high value, usually 10 and 90 percent of pulse-top amplitude (vertical display is linear power).


Please contact us for your KEITHLEY 2420 REPAIR and/or KEITHLEY 2420 High Current SourceMeter w/ Measurements CALIBRATION
