KEITHLEY 2304A CALIBRATION and KEITHLEY 2304A REPAIR


A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the KEITHLEY 2304A Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another DC Power Supply?
Shop for Comparable Products on our
 used DC Power Supply page


   KEITHLEY 2304A   Description / Specification:

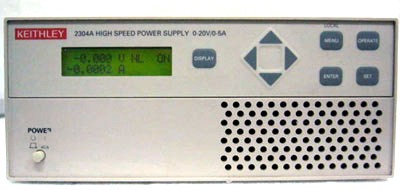

KEITHLEY 2304A High Speed Power Supply

High Speed Power Supply w/ Precision Readback: This High Speed Power Supply provides both voltage control and power consumption monitoring for automated testing of portable, battery operated devices. In addition, it can sink current and, thus, take on the characteristics of a discharged, rechargeable battery for testing chargers and charger control circuitry. Optimized for battery powered device testing. 5A continuous output. Pulse peak, average, and baseline current measurements. 100nA DC current sensitivity. 100W output (20V @ 5A). Sinks up to 3A. Maximum current 5ADC, maximum voltage 20VDC, maximum Wattage 100W. Single Output.





Standard Calibration $185.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the KEITHLEY 2304A. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Crest Factor
Crest factor or peak-to-average ratio (PAR) is a measurement of a waveform, calculated from the peak amplitude of the waveform divided by the RMS value of the waveform

Linearity
Linearity is the relative difference between the displayed power ratio, Dx/D0, and the actual (true) power ratio Px/P0 caused by changing the displayed power level from the reference level, D0, to an arbitrary displayed level, Dx.

Phase Noise
Phase noise is the frequency domain representation of rapid, short-term, random fluctuations in the phase of a waveform, caused by time domain instabilities. Phase noise (L(f)) is typically expressed in units of dBc/Hz, representing the noise power relative to the carrier contained in a 1 Hz bandwidth centered at a certain offsets from the carrier.

Sensitivity
Sensitivity is the minimum magnitude of input signal required to produce a specified output signal having a specified signal-to-noise ratio, or other specified criteria.


Please contact us for your KEITHLEY 2304A CALIBRATION and/or KEITHLEY 2304A High Speed Power Supply REPAIR
