KEITHLEY 2306-PJ CALIBRATION and KEITHLEY 2306-PJ REPAIR


A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the KEITHLEY 2306-PJ Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another DC Power Supply?
Shop for Comparable Products on our
 used DC Power Supply page


   KEITHLEY 2306-PJ   Description / Specification:   Spec Sheet

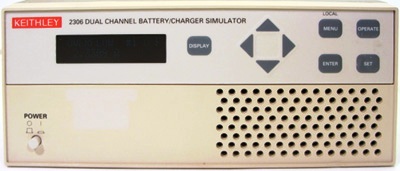

KEITHLEY 2306-PJ Dual Channel Battery/Charger Simulator

Power Supply DC: This is a Dual-Ch Battery Simulator w/ 500mA Range. These supplies employ a unique variable output resistance so the voltage output can emulate a battery’s response. They provide stable voltage outputs, even when a device-under-test (DUT) makes the rapid transition from the standby (low current) state to the RF transmission (high current) state. Ultrafast response to transient load currents. Choice of single- or dual-channel supplies. Optimized for development and testing of battery-powered devices. Variable output resistance for simulating battery response (U.S. Patent No. 6,204,647). Pulse peak, average, and baseline current measurements. 100nA DC current sensitivity. Current step measure function. Sink up to 3A. Open sense lead detection. Built-in digital voltmeter.





Standard Calibration $240.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the KEITHLEY 2306-PJ. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

dBc
dBc (decibels relative to the carrier) is the power ratio of a signal to a carrier signal, expressed in decibels. If the dBc figure is positive, then the relative signal strength is greater than the carrier signal strength. If the dBc figure is negative, then the relative signal strength is less than carrier signal strength.

Load Regulation
Load regulation is the capability to maintain a constant voltage (or current) level on the output channel of a power supply despite changes in the supply's load (such as a change in resistance value connected across the supply output).

Power Linearity
When changing the power level and measuring the differences (in dB) between actual and displayed power levels, the power linearity is ± half the span (in dB) between the maximum and the minimum value of all differences.

Settling Time
Settling time of an output device is the time elapsed from the application of an ideal instantaneous step input to the time at which the amplifier output has entered and remained within a specified error band, usually symmetrical about the final value.


Please contact us for your KEITHLEY 2306-PJ CALIBRATION and/or KEITHLEY 2306-PJ Dual Channel Battery/Charger Simulator REPAIR
