KEITHLEY 6517A REPAIR and KEITHLEY 6517A CALIBRATION


Custom-Cal has a high success rate in the repair of the KEITHLEY 6517A. A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the KEITHLEY 6517A Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another General Meter?
Shop for Comparable Products on our
 used General Meter page


   KEITHLEY 6517A   Description / Specification:

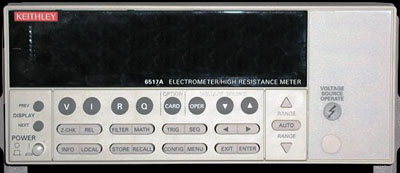

KEITHLEY 6517A Electrometer / High-Resistance Meter

The Keithley 6517 A Electrometer/High Resistance Meter offers accuracy and sensitivity specifications no other electrometer can match, so it's ideal for use in physics, optics, and materials science. Its extremely low voltage burden makes it particularly appropriate for solar cell work. With speeds of up to 125 readings per second and a built-in 1kV source, the 6517 A is a popular choice for quality control, product engineering, and production test applications involving leakage, breakdown, and high-resistance testing. Its voltage reversal method is particularly useful for making volume and surface resistivity measurements on nonconductive materials. Specifications. Measures resistances up to 10^17 Ohms. 100aA to 20mA current measurement range. <20µV burden voltage on lowest current ranges. 200TOhms input impedance. <2fA bias current. Up to 125 readings/s. 0.75fA p-p noise. Built-in ±1kV voltage source





Standard Calibration $240.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the KEITHLEY 6517A. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

dBm
dBm (sometimes dBmW) is an abbreviation for the power ratio in decibels (dB) of the measured power referenced to one milliwatt (mW). Zero dBm equals one milliwatt. A 3 dB increase represents roughly doubling the power, a 3 dB decrease, the power is reduced by about one half.

Millimeter-wave
Millimeter-wave is a term that generally refers to frequencies of 26.5 GHz and above. That is where signal wavelengths fall below approximately 10 mm, and thus the terminology changes from centimeters to millimeters.

Power Repeatability
Power Repeatability is the random uncertainty in reproducing the power level after changing and re-setting the power level. The power repeatability is ± half the span (in dB) between the highest and lowest actual power. Note: - The long-term power repeatability can be obtained by taken the power repeatability and power stability into account.

Stability
Stability is the extent to which a specified property, characteristic, or parameter of a substance, device, or apparatus, remains fixed with the passage of time or with varying environmental conditions.


Please contact us for your KEITHLEY 6517A REPAIR and/or KEITHLEY 6517A Electrometer / High-Resistance Meter CALIBRATION
