TEKTRONIX 11A72 CALIBRATION and TEKTRONIX 11A72 REPAIR


A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX 11A72 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope Plug In?
Shop for Comparable Products on our
 used Oscilloscope Plug In page


   TEKTRONIX 11A72   Description / Specification:

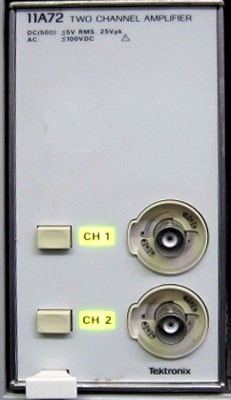

TEKTRONIX 11A72 2-Ch High-bandwidth Amplifier Plug-in

Two channel, high-bandwidth, amplifier plug-in for the 11000 Series and DSA 600A Series mainframes. Bandwidth - 1 GHz. Deflection Factor -10 mV to 1 V/div in 1-2-5 sequence. Accuracy - 6 Volts DC accuracy: With 11400: ±(0.9% +0.01 div) . With DSA 600: ±(1.0% +0.02 div). DC Balance, ±0.1 div. Offset Accuracy, ±(0.4% +0.01 div). Offset Range - ±25 div, 0.025 div resolution. Typical Noise (RMS) - 0.022 div. Input Impedance - 50 ohm ±0.5%; VSWR <=1.45:1 @10 mV/div, DC to 1 GHz; VSWR <=1.25:1 for deflection factors >= 20 mV/div, DC to 1 GHz. Disconnect Threshold - 5 Vrms typical (DC to 100 MHz). Input Coupling Modes - AC, DC, OFF. AC Coupled Low Frequency: -3 dB point; 1 kHz or less from 50 ohm source. Max Input Voltage - DC Coupled: 25 V pk or 5 Vrms. AC Coupled: ± 100 VDC additional. Input coupling is set to off when coupled signal exceeds safe limits. Manual reset by selecting either AC or DC coupling.





Standard Calibration $285.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX 11A72. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Channel Bandwidth
Channel Bandwidth is the bandwidth over which power is measured. This is usually the bandwidth in which almost all of the power of a signal is contained.

Jitter
Jitter in technical terms is the deviation in or displacement of some aspect of the pulses in a high-frequency digital signal. Jitter is the time variation of a periodic signal in electronics and telecommunications, often in relation to a reference clock source. Jitter may be observed in characteristics such as the frequency of successive pulses, the signal amplitude, or phase of periodic signals. Jitter is a significant, and usually undesired, factor in the design of almost all communications links (e.g., USB, PCI-e, SATA, OC-48). In clock recovery applications it is called timing jitter.

Overshoot
Overshoot is the distortion that follows a major transition; the difference between the peak power point and the pulse-top amplitude computed as a percentage of the pulse-top amplitude.

Rise Time
Rise time refers to the time required for a signal to change from a specified low value to a specified high value, usually 10 and 90 percent of pulse-top amplitude (vertical display is linear power).


Please contact us for your TEKTRONIX 11A72 CALIBRATION and/or TEKTRONIX 11A72 2-Ch High-bandwidth Amplifier Plug-in REPAIR
