TEKTRONIX 2465B REPAIR and TEKTRONIX 2465B CALIBRATION

Custom-Cal has a high success rate in the repair of the TEKTRONIX 2465B. A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX 2465B Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope?
Shop for Comparable Products on our  used Oscilloscope page


   TEKTRONIX 2465B   Description / Specification:

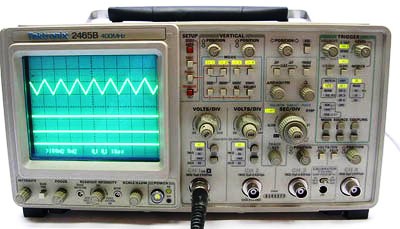

TEKTRONIX 2465B 4 Ch 400 MHz Analog Oscilloscope

The Tektronix 2465B is a 400 MHz Four channel Analog Oscilloscope. Rise Time: 0.875 ns ( >= 5 mV/div). Deflection Factor: 2 mV/div to 5 V/div, continuously variable between V/div settings (CH 1 and CH 2). 100 mV/div and 500 mV/div (CH 3 and CH 4). Deflection Factor Basic Accuracy: ±2%, measured at any V/div with a 4- or 5-div signal, centered on screen (CH 1 and CH 2). ±10% (CH 3 and CH 4) between 15°C and 35°C. Input Coupling and Max Voltage: (1 M-Ohm) AC, DC, GND; Max input voltage: 400 V (DC + peak AC). (50 ohm) Max input voltage: 5 V RMS average for 1 sec, ±50 V peak. Input R and C: 1 M-Ohm ±5% and 15 pF ±2 pF or 50 ohm (nominal). Channel Isolation: >= 100:1 at 100 MHz, >=50:1 at nominal bandwidth (CH 1, CH 2), >=50:1 at 100 MHz (CH 3, CH 4). AC-Coupled Lower -3 dB Point: 10Hz or less. 1 Hz or less with standard accessory probe. Chop Mode Switching Rate: 2.5 MHz ±0.2% (20 us/div to 2 us/div). 1 MHz ±0.2% for all other sweep speeds. Display Modes: A (main sweep), A INTENsified, ALTernate, A INTEN with B (delayed sweep) and B. In X-V mode, CH 1 provides X-axis (horizontal) deflection. A Sweep Time Base Range: 500 ms/div to 5 ns/div (to 500 ps/div with X10 magnification). B Sweep Time Base Range: 50 ms/div to 5 ns/div (to 500 ps/div with X10 magnification). A and B Trigger Coupling: DC, Noise Reject, HF Reject, LF Reject, AC. Trigger Level Range: ±18 times V/div setting for CH 1 and CH 2. ±9 times V/div setting for CH 3 and CH 4. Trigger Sensitivity to 50 MHz from CH 1 or CH 2: 0.35 div DC coupled; <=1.2 div noise reject coupled; 0.5 div from DC to 30 kHz HF reject coupled; 0.5 divs from 80 kHz LF reject coupled; 0.35 divs from 60 Hz AC coupled. Display Graticule Size: 80 mm x 100 mm. Option 10, IEEE-488 GPIB Interface





Standard Calibration $190.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX 2465B. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.
