TEKTRONIX 5B12N CALIBRATION and TEKTRONIX 5B12N REPAIR


A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX 5B12N Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope Plug In?
Shop for Comparable Products on our
 used Oscilloscope Plug In page


   TEKTRONIX 5B12N   Description / Specification:

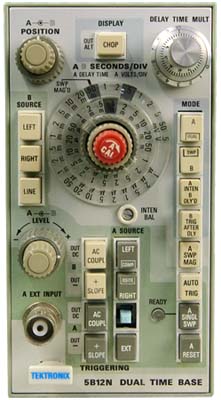

TEKTRONIX 5B12N Dual Sweep Time Base Amplifier Plug-in

Tektronix 5B12N Dual Sweep Time Base plug-in amplifier for use in any 5000 Series mainframe. Sweep Rates - Calibrated: 1 us/div to 5 s/div in 21 steps (1-2-5 sequence). X10 Magnifier extends displayed sweep time/div to 100 ns. Uncalibrated: Continuously variable between steps and to 12.5 s/div. B Sweep: 0.2 us/div to 0.5 s/div in 20 calibrated steps. Sweep Accuracy - Unmagnified: Within 3% from 1 us/div to 1 s/div and within 4% at 2 s/div and 5 s/div. Add 1% for magnified sweep operation. B Sweep: Within 3% from 1 us/div to 0.1 s/div. Within 4% at 0.2 us/div, 0.5 us/div, 0.2 s/div, and 0.5 s/div. External Trigger Input - Maximum Input: 350 V (dc + peak ac). Input R and C: 1 M-ohm within 2% paralleled by ~70 pF. Trigger Level Voltage Range: +5 V to -5 V. Deflection Factor - Calibrated: 50 mV/div and 500 mV/div. Accuracy is within 3%. X10 variable extends range to at least 5 V/div. Bandwidth - Dc Coupled: Dc to at least 1 MHz. Ac Coupled: 50 Hz or less to at least 1 MHz. Input R and C - 1 M-ohm within 2% paralleled by ~70pF. Maximum Input Voltage - 350 V (dc + peak ac). Delay Time - Accuracy: 1 us/div to 0.5 s/div, within 1%. 1 s/div to 5 s/div, within 2%. Multiplier Range: 0.2 to 10.2 times the time/division setting. Multiplier Incremental Linearity: Within 0.2%. Differential Time Measurement Accuracy - Within 1% plus 2 minor dial div for 1 uS to 0.5 s delay times. Within 2% plus 2 minor dial div for 1 s to 5 s delay times. Jitter - < 0.05% of the time represented by one division of the delaying sweep selected.





Standard Calibration $160.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX 5B12N. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Average Power
Average power means that the energy transfer rate is to be averaged over many periods of the lowest frequency involved. For a CW signal, the lowest frequency and highest frequency are the same, so average power and power are the same. For an amplitude modulated wave, the power must be averaged over many periods of the modulation component of the signal as well.

Dynamic range
Dynamic range the ratio of a specified maximum level of a parameter, such as power, current, voltage or frequency, to the minimum detectable value of that parameter.

Modulation
Modulation is the process by which the characteristic of one wave (the carrier) is modified by another.

Repeatability
Repeatability is the variation in a number of repeated measured quantities when measurement conditions are changed and restored. The value corresponds to half the spread between the minimum and maximum value measured.


Please contact us for your TEKTRONIX 5B12N CALIBRATION and/or TEKTRONIX 5B12N Dual Sweep Time Base Amplifier Plug-in REPAIR
