TEKTRONIX 7A18A CALIBRATION and TEKTRONIX 7A18A REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX 7A18A Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope Plug In?
Shop for Comparable Products on our  used Oscilloscope Plug In page


   TEKTRONIX 7A18A   Description / Specification:

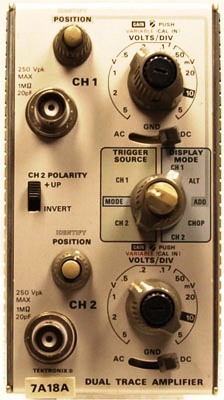

TEKTRONIX 7A18A Dual Trace Amplifier Plug-in

Tektronix 7A18A Dual-trace plug-in amplifier for the 7800, 7900 and 7100 Series mainframes. Bandwidth - Dc Coupled: 75 MHz (5 mV/div to 5 V/div). Ac Coupled: 10 Hz or less to 75 MHz (5 mV/div to 5 V/div). Deflection Factor - Calibrated: 5 mV/div to 5 V/div in ten steps (1 -2-5 sequence). Accuracy is within 2% with gain adjusted to 10 mV/div. Uncalibrated: Variable continuously between steps to a maximum of at least 12.5 V/div. Input R and C: 1 M-ohm within 2%; 20 pF. Maximum Input Voltage - Dc Coupled: 250 V (dc + peak ac), ac component 500 V p-p maximum, 1 kHz or less. Ac Coupled: 500 V (dc + peak ac), ac component 500 V p-p maximum, 1 kHz or less. Dc Stability - Drift with Ambient Temperature (Line Voltage Constant): 0.01 div/C. Drift with Time (Ambient Temperature and Line Voltage Constant): 0.02 div in anyone minute after one hour warm-up. Displayed Noise - 0.06 div or less. Common-Mode Rejection Ratio (Add, CH 2 Invert) - At least 10:1, dc to 50 MHz. Option 06, Dc Offset - Allows small signals riding on larger signals, such as power supply ripple, to be analyzed. Separate Channel 1 and Channel 2 variable offset controls are concentric with the position controls replacing the identify push-buttons of the standard 7A18A. The ac-dc ground switch of each channel is expanded to accommodate a fourth position for dc offset.





Standard Calibration $160.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX 7A18A. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Channel Bandwidth
Channel Bandwidth is the bandwidth over which power is measured. This is usually the bandwidth in which almost all of the power of a signal is contained.

Jitter
Jitter in technical terms is the deviation in or displacement of some aspect of the pulses in a high-frequency digital signal. Jitter is the time variation of a periodic signal in electronics and telecommunications, often in relation to a reference clock source. Jitter may be observed in characteristics such as the frequency of successive pulses, the signal amplitude, or phase of periodic signals. Jitter is a significant, and usually undesired, factor in the design of almost all communications links (e.g., USB, PCI-e, SATA, OC-48). In clock recovery applications it is called timing jitter.

Overshoot
Overshoot is the distortion that follows a major transition; the difference between the peak power point and the pulse-top amplitude computed as a percentage of the pulse-top amplitude.

Rise Time
Rise time refers to the time required for a signal to change from a specified low value to a specified high value, usually 10 and 90 percent of pulse-top amplitude (vertical display is linear power).

Please contact us for your TEKTRONIX 7A18A CALIBRATION and/or TEKTRONIX 7A18A Dual Trace Amplifier Plug-in REPAIR
