TEKTRONIX 7A19 CALIBRATION and TEKTRONIX 7A19 REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX 7A19 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope Plug In?
Shop for Comparable Products on our  used Oscilloscope Plug In page


   TEKTRONIX 7A19   Description / Specification:

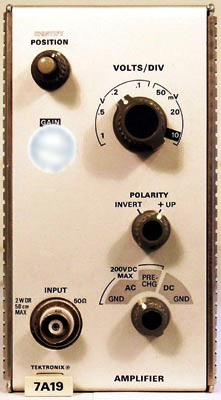

TEKTRONIX 7A19 High Performance, Wideband Single-trace Amplifier Plug-in

Tektronix 7A19 High performance, wide band, single trace plug-in amplifier for the 7100 Series mainframes. Bandwidth - Dc Coupled: 600 MHz (10 mV/div to 1 V/div). Deflection Factor - Calibrated: 10 mV/div to 1 V/div in seven steps (1-2-5 sequence). Accuracy is within 3%. Input Z - 50 ohm. Option 04, Variable Signal Delay - Permits matching the transit time of two preamps and probes to better than 50 ps. Range is ± 500 ps. Maximum Input Voltage - Dc Coupled: 50 V or 10 V RMS (whichever is less). Ac Coupled: 100 V additional. Dc Stability - Drift with Ambient Temperature (Line Voltage Constant): 100 uV/C or less.





Standard Calibration $160.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX 7A19. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Crest Factor
Crest factor or peak-to-average ratio (PAR) is a measurement of a waveform, calculated from the peak amplitude of the waveform divided by the RMS value of the waveform

Linearity
Linearity is the relative difference between the displayed power ratio, Dx/D0, and the actual (true) power ratio Px/P0 caused by changing the displayed power level from the reference level, D0, to an arbitrary displayed level, Dx.

Phase Noise
Phase noise is the frequency domain representation of rapid, short-term, random fluctuations in the phase of a waveform, caused by time domain instabilities. Phase noise (L(f)) is typically expressed in units of dBc/Hz, representing the noise power relative to the carrier contained in a 1 Hz bandwidth centered at a certain offsets from the carrier.

Sensitivity
Sensitivity is the minimum magnitude of input signal required to produce a specified output signal having a specified signal-to-noise ratio, or other specified criteria.

Please contact us for your TEKTRONIX 7A19 CALIBRATION and/or TEKTRONIX 7A19 High Performance, Wideband Single-trace Amplifier Plug-in REPAIR
