TEKTRONIX 7B80 CALIBRATION and TEKTRONIX 7B80 REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX 7B80 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope Plug In?
Shop for Comparable Products on our  used Oscilloscope Plug In page


   TEKTRONIX 7B80   Description / Specification:

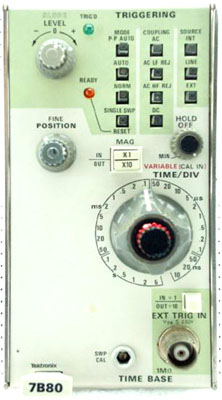

TEKTRONIX 7B80 Horizontal Time Base Plug-in

Tektronix 7B80 Horizontal time base designed for use with the 7104 Mainframe to provide optimum bandwidth/ sweep-speed compatibility, but may also be used with the 7700, 7800, and 7900 Series Mainframes. Features: 1 ns/div to 5 s/div Calibrated Time Bases. Triggering to 400 MHz. Variable Trigger Holdoff. Peak-to-Peak Auto Triggering. Sweep Rates - 5 s/div to 10 ns/div in 27 steps (1-2-5 sequence). 10X MAGNIFIER extends fastest calibrated sweep rate to 1 ns div. The uncalibrated VARIABLE is continuous to at least 2.5 times the calibrated sweep. Trace Separation Range - Funclional only in Delta Delay Time mode when alternating or chopping between time-base units. The second delayed sweep display can be vertically positioned at least 3 div below the first delayed sweep display. Delay Time Range - 0.2 or less to at least 9.0 times TIME/ DIV setting. Jitter - 0.02% of TIME/DIV setting + 0.1 ns, or less. External Trigger Input - Max input voltage is 250 V (dc + peak ac) Input R and C is 1 M-Ohm within 5% and 20 pF within 10%. The level range (excluding p-p AUTO) is at least ± 1.5 V in EXT + 1, and at least ±15 V in EXT + 10.





Standard Calibration $160.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX 7B80. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

dBc
dBc (decibels relative to the carrier) is the power ratio of a signal to a carrier signal, expressed in decibels. If the dBc figure is positive, then the relative signal strength is greater than the carrier signal strength. If the dBc figure is negative, then the relative signal strength is less than carrier signal strength.

Load Regulation
Load regulation is the capability to maintain a constant voltage (or current) level on the output channel of a power supply despite changes in the supply's load (such as a change in resistance value connected across the supply output).

Power Linearity
When changing the power level and measuring the differences (in dB) between actual and displayed power levels, the power linearity is ± half the span (in dB) between the maximum and the minimum value of all differences.

Settling Time
Settling time of an output device is the time elapsed from the application of an ideal instantaneous step input to the time at which the amplifier output has entered and remained within a specified error band, usually symmetrical about the final value.

Please contact us for your TEKTRONIX 7B80 CALIBRATION and/or TEKTRONIX 7B80 Horizontal Time Base Plug-in REPAIR
