TEKTRONIX TDS340A CALIBRATION and TEKTRONIX TDS340A REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX TDS340A Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope?
Shop for Comparable Products on our  used Oscilloscope page


   TEKTRONIX TDS340A   Description / Specification:

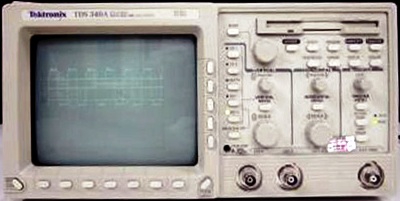

TEKTRONIX TDS340A 2 Ch Analog Oscilloscope

The Tektronix TDS 340A is a 100 MHz BW, 2 Channel, Analog Oscilloscope. It has 21 automatic waveform measurements, and four acquisition modes. Sample mode provides real-time sampling at the highest throughput rate. At slower sweep speeds, Peak Detect indicates if there is higher frequency information buried in a waveform, warning the user to increase the sweep speed to avoid aliasing. Envelope mode, by including the highest and lowest points over many acquisitions, shows variations in the signal over time. From several acquisitions, Average mode calculates an average value for each waveform point, reducing apparent noise in repetitive signals. The user-friendly TDS340A interface retains traditional analog simplicity yet gives quick access to the wide range of digital functions. Frequently used functions, like position and trigger level, are controlled directly with buttons and knobs; secondary functions are menu-driven. Option 14, the communications option, includes GPIB and RS-232-C interfaces, VGA monitor output, and a Centronics-type parallel printer port. Characteristics. Bandwidth: 100 MHz. Sample Rate: 500 MS/s on each channel. Channels: Two identical channels, each with invert function. Sensitivity: 2 mV to 10 V/div (with calibrated fine adjust). Position Range: ±5 divisions. DC Gain Accuracy: ±2%. Vertical Resolution: 8-Bits (256 levels over 10.24 vertical divisions). Acquisition Peak Detect: High frequency and random glitch capture; Captures glitches as narrow as 10 ns using acquisition hardware at all time/div settings between 25 us/div and 5 s/div (inclusive). Time/Division Range: 5 ns to 5 s/div. Record Length: 1000 sample points per channel. Horizontal Accuracy: ± 0.01 %. Roll Mode: 0.1 s/div and slower when Auto Trigger Mode is selected. Trigger Types: Edge, Video. Trigger Modes: Auto, Normal. Trigger Inputs: CH1 , CH2, Line, External. Video; Type Trigger Formats and Field Rates: Triggers on Field 1, Field 2, Any Field (noninterlaced systems) , or Lines; from Sync-negative composite video. Triggers





Standard Calibration $260.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX TDS340A. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Channel Bandwidth
Channel Bandwidth is the bandwidth over which power is measured. This is usually the bandwidth in which almost all of the power of a signal is contained.

Jitter
Jitter in technical terms is the deviation in or displacement of some aspect of the pulses in a high-frequency digital signal. Jitter is the time variation of a periodic signal in electronics and telecommunications, often in relation to a reference clock source. Jitter may be observed in characteristics such as the frequency of successive pulses, the signal amplitude, or phase of periodic signals. Jitter is a significant, and usually undesired, factor in the design of almost all communications links (e.g., USB, PCI-e, SATA, OC-48). In clock recovery applications it is called timing jitter.

Overshoot
Overshoot is the distortion that follows a major transition; the difference between the peak power point and the pulse-top amplitude computed as a percentage of the pulse-top amplitude.

Rise Time
Rise time refers to the time required for a signal to change from a specified low value to a specified high value, usually 10 and 90 percent of pulse-top amplitude (vertical display is linear power).

Please contact us for your TEKTRONIX TDS340A CALIBRATION and/or TEKTRONIX TDS340A 2 Ch Analog Oscilloscope REPAIR
