TEKTRONIX TDS360 CALIBRATION and TEKTRONIX TDS360 REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX TDS360 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope?
Shop for Comparable Products on our  used Oscilloscope page


   TEKTRONIX TDS360   Description / Specification:

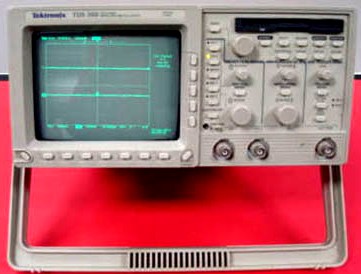

TEKTRONIX TDS360 2 Ch Analog Oscilloscope

The Tektronix TDS 360 is a 200 MHz BW, 2 Channel, Analog Oscilloscope. It has 21 automatic waveform measurements, and four acquisition modes. Sample mode provides real-time sampling at the highest throughput rate. At slower sweep speeds, Peak Detect indicates if there is higher frequency information buried in a waveform, warning the user to increase the sweep speed to avoid aliasing. Envelope mode, by including the highest and lowest points over many acquisitions, shows variations in the signal over time. From several acquisitions, Average mode calculates an average value for each waveform point, reducing apparent noise in repetitive signals. The user-friendly TDS360 interface retains traditional analog simplicity yet gives quick access to the wide range of digital functions. Frequently used functions, like position and trigger level, are controlled directly with buttons and knobs; secondary functions are menu-driven. Option 14, the communications option, includes GPIB and RS-232-C interfaces, VGA monitor output, and a Centronics-type parallel printer port. Characteristics. Bandwidth: 200 MHz. Sample Rate: 1 GS/s on each channel. Channels: Two identical channels, each with invert function. Sensitivity: 2 mV to 10 V/div (with calibrated fine adjust). Position Range: ±5 divisions. DC Gain Accuracy: ±2%. Vertical Resolution: 8-Bits (256 levels over 10.24 vertical divisions). Acquisition Peak Detect: High frequency and random glitch capture; Captures glitches as narrow as 10 ns using acquisition hardware at all time/div settings between 25 us/div and 5 s/div (inclusive). Time/Division Range: 2.5 ns to 5 s/div. Record Length: 1000 sample points per channel. Horizontal Accuracy: ± 0.01 %. Roll Mode: 0.1 s/div and slower when Auto Trigger Mode is selected. Trigger Types: Edge, Video. Trigger Modes: Auto, Normal. Trigger Inputs: CH1 , CH2, Line, External. Video; Type Trigger Formats and Field Rates: Triggers on Field 1, Field 2, Any Field (noninterlaced systems) , or Lines; from Sync-negative composite video. Triggers o





Standard Calibration $260.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX TDS360. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Crest Factor
Crest factor or peak-to-average ratio (PAR) is a measurement of a waveform, calculated from the peak amplitude of the waveform divided by the RMS value of the waveform

Linearity
Linearity is the relative difference between the displayed power ratio, Dx/D0, and the actual (true) power ratio Px/P0 caused by changing the displayed power level from the reference level, D0, to an arbitrary displayed level, Dx.

Phase Noise
Phase noise is the frequency domain representation of rapid, short-term, random fluctuations in the phase of a waveform, caused by time domain instabilities. Phase noise (L(f)) is typically expressed in units of dBc/Hz, representing the noise power relative to the carrier contained in a 1 Hz bandwidth centered at a certain offsets from the carrier.

Sensitivity
Sensitivity is the minimum magnitude of input signal required to produce a specified output signal having a specified signal-to-noise ratio, or other specified criteria.

Please contact us for your TEKTRONIX TDS360 CALIBRATION and/or TEKTRONIX TDS360 2 Ch Analog Oscilloscope REPAIR
