TEKTRONIX TDS5054B CALIBRATION and TEKTRONIX TDS5054B REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX TDS5054B Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope?
Shop for Comparable Products on our  used Oscilloscope page


   TEKTRONIX TDS5054B   Description / Specification:   Spec Sheet

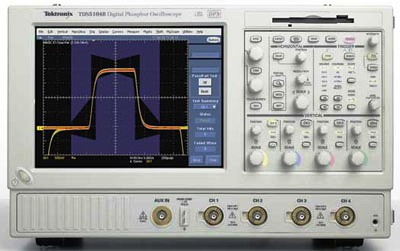

TEKTRONIX TDS5054B 4 Ch 500 MHz Digital Phosphor Oscilloscope

The Tektronix TDS5054B 500 MHz Digital Phosphor Oscilloscopes (DPO) delivers 5 GS/s real-time sample rate, up to 16 M record length, and a suite of advanced triggers, enabling you to capture and characterize even your most demanding signals. DPOs provide unmatched insight into signal behavior by displaying, storing, and analyzing complex signals in real time using three dimensions of signal information: amplitude, time, and distribution of amplitude over time. It offers a Tektronix-exclusive MyScope customizable oscilloscope user interface. MyScope is a powerful feature that allows you to build your own control windows with only the controls, features, and capabilities that you care about and are important in your job. The TDS5054B includes a complete parametric measurement system for signal characterization. Select from 53 automatic measurements using a graphical palette that logically organizes measurements into Amplitude, Time, Combination, Histogram, and Communications categories. Input Channels: 4. Analog Bandwidth (–3 dB) 5 mV/div -1 V/div: 500 MHz. Calculated Rise Time 5 mV/div (Typical): 800 ps. Hardware Bandwidth Limits: 150 MHz or 20 MHz.Input Coupling: AC, DC, GND. Input Impedance, 1 Mohm: ±1%. Input Impedance, 50 ohm: ±1%. Input Sensitivity, 1 Mohm: 1 mV/div to 10 V/div. Input Sensitivity, 50 ohm: 1 mV/div to 1 V/div. Vertical Resolution: 8 bits (>11 bits w/ averaging). DC Gain Accuracy: 1.5% with offset set to 0 V. Time-base Range: 200 ps/div to 1000 s/div. Time-base Delay Time Range: (s/div × 10) to 1000 s. Channel-to-Channel Deskew Range: ±75 ns. Time-base Accuracy: 15 ppm. Delta Time Measurement Accuracy: (0.06/sample rate + 15 ppm × |Reading|) RMS. Real-time Sample Rates: 1 Channel (Max) 5 GS/s, 2 Channels (Max) 2.5 GS/s, 3-4 Channels (Max) 1.25 GS/s. Maximum Record Length per Channel with Standard Memory: 16M/8M/4M. Time Resolution (Single shot): 200 ps (5 GS/s). 10.4 in. Bright Display. GPIB Controller. CD-RW Drive. Opt. 1R, Rackmount kit. Opt. SM, Communication mask testing. Opt. VNM, CAN bus decode requires ATM1 trigger module. Opt. PS1, Power bundle. Opt. CP2, TDSCPM2 – ANSI/ITU telecom pulse compliance testing software. Opt. ET3, TDSET3 – Ethernet compliance test software. Opt. J2, TDSDDM2 – Disk drive measurement software. Opt. JA3, TDSJIT3 v2.0 Advanced – Jitter and timing analysis software. Opt. JE3, TDSJIT3 v2.0 Essentials – Jitter and timing analysis software. Opt. PW3, TDSPWR3 – Power measurement software. Opt. USB, USB 2.0 compliance test software only.





Standard Calibration $260.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX TDS5054B. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

dBm
dBm (sometimes dBmW) is an abbreviation for the power ratio in decibels (dB) of the measured power referenced to one milliwatt (mW). Zero dBm equals one milliwatt. A 3 dB increase represents roughly doubling the power, a 3 dB decrease, the power is reduced by about one half.

Millimeter-wave
Millimeter-wave is a term that generally refers to frequencies of 26.5 GHz and above. That is where signal wavelengths fall below approximately 10 mm, and thus the terminology changes from centimeters to millimeters.

Power Repeatability
Power Repeatability is the random uncertainty in reproducing the power level after changing and re-setting the power level. The power repeatability is ± half the span (in dB) between the highest and lowest actual power. Note: - The long-term power repeatability can be obtained by taken the power repeatability and power stability into account.

Stability
Stability is the extent to which a specified property, characteristic, or parameter of a substance, device, or apparatus, remains fixed with the passage of time or with varying environmental conditions.

Please contact us for your TEKTRONIX TDS5054B CALIBRATION and/or TEKTRONIX TDS5054B 4 Ch 500 MHz Digital Phosphor Oscilloscope REPAIR
