TEKTRONIX TDS540A REPAIR and TEKTRONIX TDS540A CALIBRATION

Custom-Cal has a high success rate in the repair of the TEKTRONIX TDS540A. A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX TDS540A Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope?
Shop for Comparable Products on our  used Oscilloscope page


   TEKTRONIX TDS540A   Description / Specification:

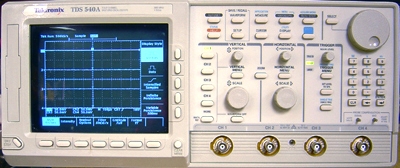

TEKTRONIX TDS540A 4-Ch 500 MHz Digitizing Oscilloscope

The Tektronix TDS540A 500 MHz Digitizing Oscilloscope. Specifications. Channels: 4. Max Sample Rate: 1 GS/s (Single channel). DC Gain Accuracy - ± 1.0%; Vertical Resolution - 8 bits (256 leve ls over 10.24 vertical divisions). Analog Bandwidth Selections - 20 MHz, 100 MHz, and full. Input Coupling - AC, DC or GND. Input Impedance Selections - 1 M-ohm in parallel with 10 pF, or 50 ohm (AC and DC coupling) . Maximum Input Voltage - ±400 V (DC + peak AC). Derate at 20 dB/decade above 1 MHz, 1 M-ohm or GND coupled. Channel Isolation - > 100:1 at 100 MHz and >30:1 at bandwidth for any two channels having equal Volts/div settings. AC Coupled Low Frequency Limit - <= 10 Hz when AC 1 M-ohm coupled. <= 200 kHz when AC 50 ohm coupled. Time Bases - Main, Delayed. Time/Division Range - 500 ps to 10 s/div. Time Base Accuracy - ± 25 ppm over any interval >= 1 ms. Record Length - 500 to 15,000 pts (50K pts optional). Triggers - Main, Delayed. Main Trigger Modes - Auto, Normal, Single. Time Delay Range - 16 ns to 250 s (time/div <= 10 us); 15.1 ns to 250 s (time/div >=25 us). Monochrome CRT, 7 in. diagonal, magnetic deflection. Horizontal raster-scan. P4 White phosphor.





Standard Calibration $260.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX TDS540A. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Crest Factor
Crest factor or peak-to-average ratio (PAR) is a measurement of a waveform, calculated from the peak amplitude of the waveform divided by the RMS value of the waveform

Linearity
Linearity is the relative difference between the displayed power ratio, Dx/D0, and the actual (true) power ratio Px/P0 caused by changing the displayed power level from the reference level, D0, to an arbitrary displayed level, Dx.

Phase Noise
Phase noise is the frequency domain representation of rapid, short-term, random fluctuations in the phase of a waveform, caused by time domain instabilities. Phase noise (L(f)) is typically expressed in units of dBc/Hz, representing the noise power relative to the carrier contained in a 1 Hz bandwidth centered at a certain offsets from the carrier.

Sensitivity
Sensitivity is the minimum magnitude of input signal required to produce a specified output signal having a specified signal-to-noise ratio, or other specified criteria.

Please contact us for your TEKTRONIX TDS540A REPAIR and/or TEKTRONIX TDS540A 4-Ch 500 MHz Digitizing Oscilloscope CALIBRATION
