TEKTRONIX TDS640A CALIBRATION and TEKTRONIX TDS640A REPAIR


A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX TDS640A Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope?
Shop for Comparable Products on our
 used Oscilloscope page


   TEKTRONIX TDS640A   Description / Specification:

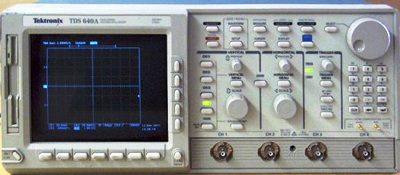

TEKTRONIX TDS640A 4-Ch 500 MHz Digitizing Oscilloscope

The Tektronix TDS640A 500 MHz Digitizing Oscilloscope. Specifications. Channels: 4. Max Sample Rate: 2 GS/s (Single channel). DC Gain Accuracy - ± 1.5%; Vertical Resolution - 8 bits (256 levels over 10.24 vertical divisions). Analog Bandwidth Selections - 20 MHz, 100 MHz, and full. Input Coupling - AC, DC or GND. Input Impedance Selections - 1 M-ohm in parallel with 10 pF, or 50 ohm (AC and DC coupling) . Maximum Input Voltage - ±400 V (DC + peak AC). Derate at 20 dB/decade above 1 MHz, 1 M-ohm or GND coupled. Channel Isolation - > 100:1 at 100 MHz and >30:1 at bandwidth for any two channels having equal Volts/div settings. AC Coupled Low Frequency Limit - <= 10 Hz when AC 1 M-ohm coupled. <= 200 kHz when AC 50 ohm coupled. Time Bases - Main, Delayed. Time/Division Range - 500 ps to 5 s/div. Time Base Accuracy - ± 100 ppm over any interval >= 1 ms. Record Length - 500 to 2000 pts. Triggers - Main, Delayed. Main Trigger Modes - Auto, Normal, Single. Time Delay Range - 16 ns to 250 s (time/div <= 10 us); 15.1 ns to 250 s (time/div >=25 us). Monochrome CRT, 7 in. diagonal, magnetic deflection. Horizontal raster-scan. P4 White phosphor.





Standard Calibration $160.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX TDS640A. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Carrier Wave (CW)
Carrier Wave or Continuous Wave is a sinusoidal signal without modulation.

Harmonic
A harmonic of a wave is a component frequency of the signal that is an integer multiple of the fundamental frequency, i.e. if the fundamental frequency is f, the harmonics have frequencies 2f, 3f, 4f, . . . etc.

Noise Floor
Noise floor is the measure of the signal created from the sum of all the noise sources and unwanted signals within a measurement system.

Ripple
Ripple is the small unwanted residual periodic variation of the direct current (dc) output


Please contact us for your TEKTRONIX TDS640A CALIBRATION and/or TEKTRONIX TDS640A 4-Ch 500 MHz Digitizing Oscilloscope REPAIR
