TEKTRONIX TDS644A CALIBRATION and TEKTRONIX TDS644A REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX TDS644A Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope?
Shop for Comparable Products on our  used Oscilloscope page


   TEKTRONIX TDS644A   Description / Specification:

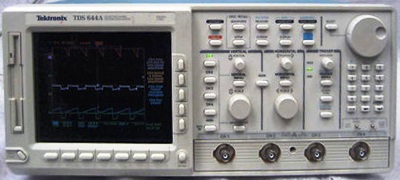

TEKTRONIX TDS644A 4-Ch 500 MHz Digitizing Oscilloscope

The Tektronix TDS644A 500 MHz Digitizing Oscilloscope. Specifications. Channels: 4. Max Sample Rate: 2 GS/s (Single channel). DC Gain Accuracy - ± 1.5%; Vertical Resolution - 8 bits (256 levels over 10.24 vertical divisions). Analog Bandwidth Selections - 20 MHz, 100 MHz, and full. Input Coupling - AC, DC or GND. Input Impedance Selections - 1 M-ohm in parallel with 10 pF, or 50 ohm (AC and DC coupling) . Maximum Input Voltage - ±400 V (DC + peak AC). Derate at 20 dB/decade above 1 MHz, 1 M-ohm or GND coupled. Channel Isolation - > 100:1 at 100 MHz and >30:1 at bandwidth for any two channels having equal Volts/div settings. AC Coupled Low Frequency Limit - <= 10 Hz when AC 1 M-ohm coupled. <= 200 kHz when AC 50 ohm coupled. Time Bases - Main, Delayed. Time/Division Range - 500 ps to 5 s/div. Time Base Accuracy - ± 100 ppm over any interval >= 1 ms. Record Length - 500 to 2000 pts. Triggers - Main, Delayed. Main Trigger Modes - Auto, Normal, Single. Time Delay Range - 16 ns to 250 s (time/div <= 10 us); 15.1 ns to 250 s (time/div >=25 us). Color CRT, 7 in. liquid crystal full-color shutter with 256 levels.





Standard Calibration $160.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX TDS644A. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Clipping
Clipping is the limiting of a signal so that it never exceeds some threshold.

Line Regulation
Line regulation is the capability to maintain a constant output voltage level on the output channel of a power supply despite changes to the input voltage level.

Peak Envelope Power
Peak envelope power is the maximum value of the envelope power. Envelope power is measured by making the averaging time much less than 1/fm where fm is the maximum frequency component of the modulation waveform. The averaging time is therefore limited on both ends: (1) it must be small compared to the period of the highest modulation frequency, and (2) it must be large enough to be many RF cycles long.

RMS
RMS or root mean square is a statistical measure of the magnitude of a varying quantity

Please contact us for your TEKTRONIX TDS644A CALIBRATION and/or TEKTRONIX TDS644A 4-Ch 500 MHz Digitizing Oscilloscope REPAIR
