TEKTRONIX TDS784A CALIBRATION and TEKTRONIX TDS784A REPAIR


A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX TDS784A Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope?
Shop for Comparable Products on our
 used Oscilloscope page


   TEKTRONIX TDS784A (TDS 784A)   Description / Specification:

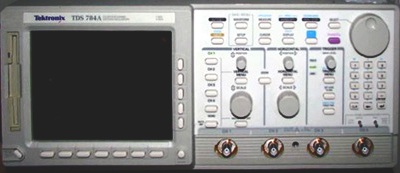

TEKTRONIX TDS784A 4 Ch 1 GHz Digitizing Oscilloscope

The Tektronix TDS 784A Four-channel Color 1 GHz Digitizing Oscilloscope is used for acquiring, displaying, and measuring waveforms. Its performance addresses the needs of both benchtop lab and portable applications. The TDS 784A introduces InstaVu Acquisition mode with waveform capture rates exceeding 400,000 waveforms per second, InstaVu allows you to instantaneously capture glitches and signal anomalies. Specifications. Channels: 4. Samplers: 4. Bandwidth: 1 GHz. Maximum Sample Rate: 4 GS/s (1 channel), 2 GS/s (2 channels), 1 GS/s (4 channels). Maximum Record Lengths: 500,000 Points. Time Bases: Main, Delayed. Time/Division Range: 200 ps to 10 s/div. Time-base Accuracy: ±25 ppm over any interval >= 1 ms. Pre-trigger Position: 0 to 100% of record. Delay Between Channels: <= 50 ps between any two channels with equal V/div and coupling. DC Gain Accuracy: ± 1.0%. Vertical Resolution: 8-Bits (256 levels over 10.24 vertical divisions) , > 13-Bits with Hi-Res, 11-Bits with averaging. Analog Bandwidth Selections: 20 MHz, 100 MHz, and full. Input Coupling: AC, DC or GND. Input Impedance Selections:1 M-ohm in parallel with 10 pF, or 50 ohm (AC and DC coupling). Maximum Input Voltage: ±400 V (DC + peak AC). Derate at 20 dB/decade above 1 MHz, 1 M-ohm or GND coupled. Channel Isolation: > 100:1 at 100 MHz and >30:1 at bandwidth for any two channels having equal V/div settings. Step Response Setting: <= 0.5% error within 20 ns of a <= 2 V step. Sensitivity: 1 mV to 10 V/div. Position Range: ±5 Divisions. Offset: ± 1 V from 1 to 100 mV/div. ± 10 V from 101 mV to 1 V/div. ± 100 V from 1.01 to 10 V/div. GPIB (IEEE 488.2) - Full Programmability. Options. Opt. 05 - Video Trigger, NTSC, PAL, HDTV, FlexFormat. Opt. 1 M - 500 K Memory Length.





Standard Calibration $220.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX TDS784A. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Bandwidth
Bandwidth is the difference between the upper and lower frequencies in a contiguous set of frequencies within which a component, link or network will operate.

Frequency Span
Frequency Span specifies the range between the start and stop frequencies, also referred to as bandwidth

Noise Figure
Noise Figure the ratio of the signal-to-noise power ratio at the input to the signal-to-noise power ratio at the output.

Ringing
Ringing is an unwanted oscillation of a voltage or current.


Please contact us for your TEKTRONIX TDS784A CALIBRATION and/or TEKTRONIX TDS784A 4 Ch 1 GHz Digitizing Oscilloscope REPAIR
