TEKTRONIX TDS784D REPAIR and TEKTRONIX TDS784D CALIBRATION


Custom-Cal has a high success rate in the repair of the TEKTRONIX TDS784D. A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX TDS784D Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope?
Shop for Comparable Products on our
 used Oscilloscope page


   TEKTRONIX TDS784D (TDS 784D)   Description / Specification:

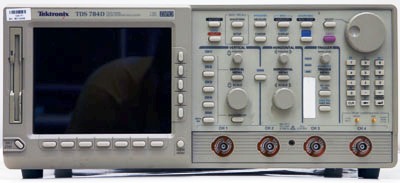

TEKTRONIX TDS784D 4 Ch 1 GHz Digital Phosphor Oscilloscope

The Tektronix TDS 784D offers wide dynamic range, vertical resolution up to 13-Bits, fast overdrive recovery and 1 mV/div sensitivity. Innovative and accessible logic triggering features that can isolate glitches, runts and timing problems quickly and reliably. Specifications. Bandwidth: 1 GHz. Total Channels: 4. Sample Rate (1 ch): 4 GS/s. Record Length per Channel: 50 k pts. Vertical Resolution: 8-Bits (> 11 -Bits with averaging). Vertical Sensitivity: 1 mV/ div to 10 V/div. Vertical Accuracy: ±1%. Maximum Input Voltage (1 Mohm): 300 V CAT II. Linear Dynamic Range: ±5 div. Channel Deskew Range: ±25 ns. BW Limit: 20, 250 MHz. Time Base Range: 200 ps/div to 10 s/div. Time Base Accuracy: 25 ppm. Peak Detection: 1 ns. Waveform Capture Rate (500 point waveforms/sec): 200,000. Trigger Jitter: 8 ps. Trigger Conditioning: HF, LF, Noise Reject. Color CRT Monitor.





Standard Calibration $255.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX TDS784D. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Channel Bandwidth
Channel Bandwidth is the bandwidth over which power is measured. This is usually the bandwidth in which almost all of the power of a signal is contained.

Jitter
Jitter in technical terms is the deviation in or displacement of some aspect of the pulses in a high-frequency digital signal. Jitter is the time variation of a periodic signal in electronics and telecommunications, often in relation to a reference clock source. Jitter may be observed in characteristics such as the frequency of successive pulses, the signal amplitude, or phase of periodic signals. Jitter is a significant, and usually undesired, factor in the design of almost all communications links (e.g., USB, PCI-e, SATA, OC-48). In clock recovery applications it is called timing jitter.

Overshoot
Overshoot is the distortion that follows a major transition; the difference between the peak power point and the pulse-top amplitude computed as a percentage of the pulse-top amplitude.

Rise Time
Rise time refers to the time required for a signal to change from a specified low value to a specified high value, usually 10 and 90 percent of pulse-top amplitude (vertical display is linear power).


Please contact us for your TEKTRONIX TDS784D REPAIR and/or TEKTRONIX TDS784D 4 Ch 1 GHz Digital Phosphor Oscilloscope CALIBRATION
