TEKTRONIX TDS794D CALIBRATION and TEKTRONIX TDS794D REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX TDS794D Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope?
Shop for Comparable Products on our  used Oscilloscope page


   TEKTRONIX TDS794D (TDS 794D)   Description / Specification:

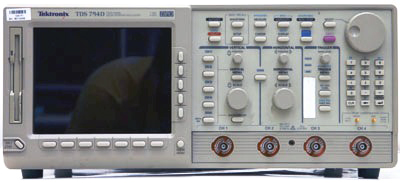

TEKTRONIX TDS794D 4 Ch 2 GHz Digital Phosphor Oscilloscope

The Tektronix TDS 794D offers wide dynamic range, vertical resolution up to 13-Bits, fast overdrive recovery and 1 mV/div sensitivity. Innovative and accessible logic triggering features that can isolate glitches, runts and timing problems quickly and reliably. Specifications. Bandwidth: 2 GHz. Total Channels: 4. Sample Rate ( 1 ch): 4 GS/s. Record Length per Channel: 50 k pts. Vertical Resolution: 8-Bits (> 11 -Bits with averaging). Vertical Sensitivity: 10 mV/ div to 1 V/div (50 ohm). Vertical Accuracy: ±1%. Maximum Input Voltage (50 ohm): 5 V rms. Linear Dynamic Range: ±5 div. Channel Deskew Range: ±25 ns. BW Limit: Full BW only. Time Base Range: 200 ps/div to 10 s/div. Time Base Accuracy: 25 ppm. Peak Detection: 1 ns. Waveform Capture Rate (500 point waveforms/sec): 200,000. Trigger Jitter: 8 ps. Trigger Conditioning: HF, LF, Noise Reject. Color CRT Monitor.





Standard Calibration $285.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX TDS794D. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

dBc
dBc (decibels relative to the carrier) is the power ratio of a signal to a carrier signal, expressed in decibels. If the dBc figure is positive, then the relative signal strength is greater than the carrier signal strength. If the dBc figure is negative, then the relative signal strength is less than carrier signal strength.

Load Regulation
Load regulation is the capability to maintain a constant voltage (or current) level on the output channel of a power supply despite changes in the supply's load (such as a change in resistance value connected across the supply output).

Power Linearity
When changing the power level and measuring the differences (in dB) between actual and displayed power levels, the power linearity is ± half the span (in dB) between the maximum and the minimum value of all differences.

Settling Time
Settling time of an output device is the time elapsed from the application of an ideal instantaneous step input to the time at which the amplifier output has entered and remained within a specified error band, usually symmetrical about the final value.

Please contact us for your TEKTRONIX TDS794D CALIBRATION and/or TEKTRONIX TDS794D 4 Ch 2 GHz Digital Phosphor Oscilloscope REPAIR
