Keysight (Agilent) 11722A CALIBRATION and Keysight (Agilent) 11722A REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the Keysight (Agilent) 11722A Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another RF Power Sensor?
Shop for Comparable Products on our  used RF Power Sensor page


   Keysight (Agilent) 11722A   Description / Specification:

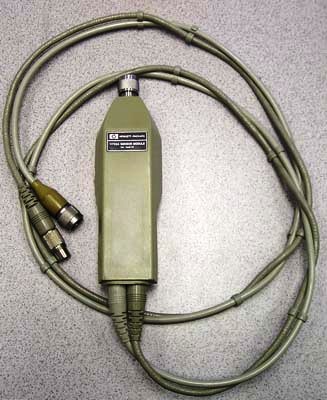

Keysight (Agilent) 11722A 2.6 GHz Sensor Module

The Agilent 11722A Sensor Module, you get all the performance of the Modulation Analyzer, plus superb power measurement accuracy, at a single connector. You can characterize a signal without manually switching between the power sensor and the analyzer’s RF input.

FREQUENCY RANGE: 100 kHz to 2.6 GHz.
POWER RANGE: +30 dBm (1 watt) to -20 dBm (10 μW).
INPUT SWR (CONNECTED TO AN 8901B): <1.15, for RF Power Measurements.
POWER SENSOR LINEARITY: +2%, - 4%; +30 dBm to +20 dBm, Negligible deviation, levels <+20 dBm.
MAXIMUM PEAK POWER: 100 Wpeak or 300 W μs per pulse.
INPUT IMPEDANCE: 50 Ω nominal.
INPUT CONNECTOR: Type N male.
SWITCH LIFE: >1,000,000 switchings.
SWITCH Isolation: >90 dB.





Standard Calibration $405.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the Keysight (Agilent) 11722A. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related RF Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Carrier Wave (CW)
Carrier Wave or Continuous Wave is a sinusoidal signal without modulation.

Millimeter-wave
Millimeter-wave is a term that generally refers to frequencies of 26.5 GHz and above. That is where signal wavelengths fall below approximately 10 mm, and thus the terminology changes from centimeters to millimeters.

Resolution Bandwidth (RBW)
Resolution Bandwidth (RBW) is the minimum bandwidth over which you can separate two signals and still see them.

Please contact us for your Keysight (Agilent) 11722A CALIBRATION and/or Keysight (Agilent) 11722A 2.6 GHz Sensor Module REPAIR
