CDI 502LDFN CALIBRATION


A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the CDI 502LDFN Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Torque Wrench? Shop for Comparable Products on our   new Torque Wrench page


   CDI 502LDFN   Description / Specification:

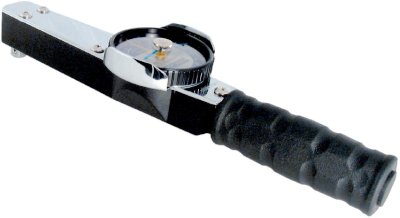

CDI 502LDFN 0-50 ft-lb 3/8" Drive Dial Torque Wrench

The CDI 502LDFN Dial Torque Wrench is designed for the automotive, nuclear and industrial markets in addition to military installations throughout the world. This series features sturdy torsion beam design for dependable long life and accuracy. Features. Sturdy body construction insures durability. Easy to read laser marked dual scale. Large easy to read dial is shock resistant and protected by a tough metal guard. Memory needle retains highest torque reading applied. Calibrated in both CW and CCW direction. Specifications: Range: 0-50 ft. lb. Increments: 1 ft. lb. Accuracy: ± 3% of indicated value, CW & CCW, from 20% to 100% of full scale. Square Drive Size: 3/8". Head Style: Ratchet. Length: 15". Weight: 1.6 lbs.





Standard Calibration $45.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the CDI 502LDFN. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Mechanical Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Ball Micrometer
Ball micrometers have ball-shaped (spherical) anvils. They may have one flat and one ball anvil, in which case they are used for measuring tube wall thickness, distance of a hole to an edge, and other distances where one anvil must be placed against a rounded surface.

in-oz
Inch-ounce is a measurment of torque expressed as a force (ounce) multiplied by (i.e. “times”) a distance (inch). It is the amount of force applied in the direction of turning by one ounce on a one inch lever. To convert Inch-ounce to Inch-pound multiply by 0.0625. To convert Inch-ounce to Foot-pound (ft-lb) multiply by 0.0052.

Strain
A strain is a normalized measure of deformation representing the displacement between particles in the body relative to a reference length.
