Keysight (Agilent) 8711C REPAIR and Keysight (Agilent) 8711C CALIBRATION


Custom-Cal has a high success rate in the repair of the Keysight (Agilent) 8711C. A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the Keysight (Agilent) 8711C Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Network Analyzer, SNA, VNA?
Shop for Comparable Products on our
 used Network Analyzer, SNA, VNA page or new Network Analyzer, SNA, VNA page


   Keysight (Agilent) 8711C   Description / Specification:

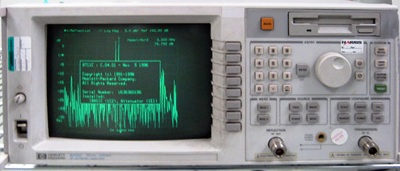

Keysight (Agilent) 8711C RF Economy Network Analyzer

The HP 8711C RF economy network analyzer provides speed, accuracy, and measurement versatility in a compact, integrated instrument for high-volume RF component manufacturing, inspection, and maintenance. An integrated synthesized source and transmission/reflection test set enable complete swept frequency characterization of RF components with a single connection. For testing narrowband devices, the internal synthesized source provides a fast (50 ms/sweep), stable (1 Hz resolution) stimulus. Calculate and display specified device characteristics in real time. Eight markers per channel, marker search, tracking, bandwidth, and a variety of math functions speed component testing. Source Characteristics; Frequency Range: 300 kHz to 1.3 GHz. Frequency Resolution: 1 Hz. Accuracy: <5 ppm. Output Characteristics; Power Range (standard): <1000 MHz, 0 to 16 dBm (>1000 MHz, 0 to 13 dBm). Test Port Accuracy and Flatness: ±1.0 dB. Signal Purity Harmonics (at +7 dBm): <1 MHz, <-20 dBc (>1 MHz, <-30 dBc). Receiver Characteristics; Frequency Range: Narrowband 300 kHz to 1.3 GHz, Broadband 10 MHz to 1.3 GHz. AM Delay Characteristics; Apertures: 55.56 kHz. Input Amplifier Range: -10 to +13 dBm. Resolution: 0.5 ns. Range: 30 µs (9000 m). Accuracy: ±4 ns. Test Set Characteristics; Reflection Port Match: 30 dB. Transmission Port Match: 18 dB typical. System Directivity: 40 dB. Options: 1EC, 75 ohm System Impedance. 1E1, 60 dB Attenuator. 1C2, IBASIC Capability. 1DA, 50 ohm AM Delay. 1DB, 75 ohm AM Delay. 1CL, DIN Keyboard. 1CM, Rackmount. 100, Fault Location/SRL. 101, Transportable Operating Case plus Fault Location/SRL. 1F7, LAN Interface.





Standard Calibration $350.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the Keysight (Agilent) 8711C. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related RF Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Averaging
Averaging is a mathematical process to reduce the variation in a measurement by summing the data points from multiple measurements and dividing by the number of points summed.

Jitter
Jitter in technical terms is the deviation in or displacement of some aspect of the pulses in a high-frequency digital signal. Jitter is the time variation of a periodic signal in electronics and telecommunications, often in relation to a reference clock source. Jitter may be observed in characteristics such as the frequency of successive pulses, the signal amplitude, or phase of periodic signals. Jitter is a significant, and usually undesired, factor in the design of almost all communications links (e.g., USB, PCI-e, SATA, OC-48). In clock recovery applications it is called timing jitter.

Pulse Power
Pulse Power, the energy transfer rate is averaged over the pulse width. Pulse width is considered to be the time between the 50 percent risetime/falltime amplitude points. Pulse power averages out any aberrations in the pulse envelope such as overshoot or ringing.


Please contact us for your Keysight (Agilent) 8711C REPAIR and/or Keysight (Agilent) 8711C RF Economy Network Analyzer CALIBRATION
