TEKTRONIX 80C07B CALIBRATION and TEKTRONIX 80C07B REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX 80C07B Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope Plug In?
Shop for Comparable Products on our  used Oscilloscope Plug In page


   TEKTRONIX 80C07B   Description / Specification:   Spec Sheet

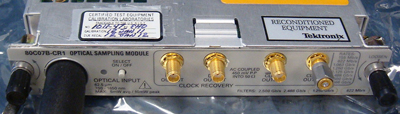

TEKTRONIX 80C07B 700 to 1650 nm Optical Sampling Module

The Tektronix 80C07B Optical Sampling Module and its available options is a high-performance optical module that supports high bandwidth telecom and datacom standards. Number of input channels: 1. Effective wavelength range: 700 nm to 1650 nm. Supported standards or data filtering rates: OC-48 / STM-16, 2 Gigabit Ethernet (ENET2500/2GBE), Infiniband. Optional Supported standards or data filtering rates: OC-3 / STM-1, OC-12 / STM-4, FibreChannel (FC1063/FC), Gigabit Ethernet (ENET1250/GBE), 2G FibreChannel (FC2125/2FC). Clock recovery option: 155.52 Mb/s (OC-3/STM-1), 622.08 Mb/s (OC-12/STM-4), 1062.5 Mb/s (FC1063/FC), 1250 Mb/s (ENET1250/GBE), 2125 Mb/s (FC2125/2FC), 2488.32 Mb/s (OC-48/STM-16), 2500 Mb/s (ENET2500/2GBE), 2500 Mb/s (Infiniband), 2666.06 Mb/s (OC-48-FEC). Absolute maximum nondestructive optical input: 5 mW average power; 10 mW peak power at wavelength with highest relative responsivity. Internal fiber diameter: 62.5 µm/125 µm multimode mode. Optical return loss: >14 dB for multimode fiber, >24 dB for single-mode fiber. Minimum optical bandwidth at optical connector: >2.3 GHz. Options. CR1 Adds 155/622/1063/1250/2125/2488/2500/2666 Mb/s clock recovery. F1 Adds reference receiver filters OC-3 (155 Mb/s) and OC-12 (622 Mb/s). F2 Adds reference receiver filters OC-3 (155 Mb/s) and FibreChannel (1063 Mb/s). F3 Adds reference receiver filters OC-3 (155 Mb/s) and Gigabit Ethernet (1250 Mb/s). F4 Adds reference receiver filters OC-3 (155 Mb/s) and 2G FibreChannel (2125 Mb/s). F5 Adds reference receiver filters OC-12 (622 Mb/s) and FibreChannel (1063 Mb/s). F6 Adds reference receiver filters OC-12 (622 Mb/s) and Gigabit Ethernet (1250 Mb/s). F7 Adds reference receiver filters OC-12 (622 Mb/s) and 2G FibreChannel (2125 Mb/s). F8 Adds reference receiver filters FibreChannel (1063 Mb/s) and Gigabit Ethernet (1250 Mb/s). F9 Adds reference receiver filters FibreChannel (1063 Mb/s) and 2G FibreChannel (2125 Mb/s). F10 Adds reference receiver filters Gigabit Ethernet (1250 Mb/s) and 2G FibreChannel (2125 Mb/s).





Standard Calibration $795.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX 80C07B. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Channel Bandwidth
Channel Bandwidth is the bandwidth over which power is measured. This is usually the bandwidth in which almost all of the power of a signal is contained.

Jitter
Jitter in technical terms is the deviation in or displacement of some aspect of the pulses in a high-frequency digital signal. Jitter is the time variation of a periodic signal in electronics and telecommunications, often in relation to a reference clock source. Jitter may be observed in characteristics such as the frequency of successive pulses, the signal amplitude, or phase of periodic signals. Jitter is a significant, and usually undesired, factor in the design of almost all communications links (e.g., USB, PCI-e, SATA, OC-48). In clock recovery applications it is called timing jitter.

Overshoot
Overshoot is the distortion that follows a major transition; the difference between the peak power point and the pulse-top amplitude computed as a percentage of the pulse-top amplitude.

Rise Time
Rise time refers to the time required for a signal to change from a specified low value to a specified high value, usually 10 and 90 percent of pulse-top amplitude (vertical display is linear power).
