TEKTRONIX MSO4054 CALIBRATION and TEKTRONIX MSO4054 REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX MSO4054 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope?
Shop for Comparable Products on our  used Oscilloscope page


   TEKTRONIX MSO4054   Description / Specification:

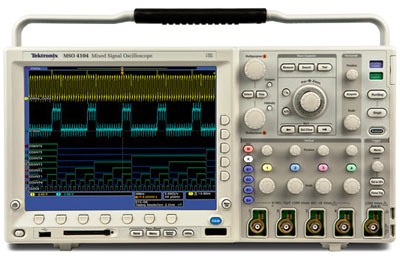

TEKTRONIX MSO4054 4+16 Ch 500 MHz, 5 GS/s, Mixed Signal Oscilloscope

The Tektronix MSO4054 Mixed Signal Oscilloscope can analyze up to 20 analog and digital signals with a single instrument to quickly find and diagnose problems in complex designs. Bandwidths up to 500 MHz and a minimum of 5x oversampling on all channels ensure you have the performance you need to see fast-changing signal details. To capture long windows of signal activity while maintaining fine timing resolution, the MSO4054 offers a deep record length of 10M points standard on all channels.

Vertical System Analog Channels
Input Channels: 4.
Analog Bandwidth (-3 dB) 5 mV/div -1 V/div: 500 MHz.
Calculated Rise Time 5 mV/div (typical): 700 ps.
Hardware Bandwidth Limits: 20 MHz or 250 MHz.
Input Coupling: AC, DC, GND.
Input Impedance 1 MΩ: ±1%, 50 Ω ±1%.
Input Sensitivity, 1 MΩ: 1 mV/div to 10 V/div.
Input Sensitivity, 50 Ω: 1 mV/div to 1 V/div.
Vertical Resolution: 8 bits (11 bits with Hi Res).
Max Input Voltage, 1 MΩ: 250 VRMS with peaks ≤ ±400 V.
Max Input Voltage, 50 Ω: 5 VRMS with peaks < ±20 V.
DC Gain Accuracy: ±1.5% with offset set to 0 V.
Channel-to-Channel Isolation: ≥100:1 at ≤100 MHz and ≥30:1 at >100 MHz up to the rated bandwidth for any two channels having equal volts/div settings.

Horizontal System Analog Channels
Maximum Sample Rate (All channels): 2.5 GS/s.
Maximum Record Length (All channels): 10M points.
Maximum Duration at Highest Sample Rate (All channels): 4 ms.
Time Base Range: 1 ns to 1,000 s.
Time Base Delay Time Range: -10 divisions to 5000 s.
Channel-to-Channel Deskew Range: ±100 ns.
Time Base Accuracy: ±5 ppm over any ≥1 ms interval.

Vertical System Digital Channels
Input Channels: 16 Digital (D15 - D0).
Thresholds: Per-channel Thresholds.
Threshold Selections: TTL, CMOS, ECL, PECL, User Defined.
User-defined Threshold Range: +5 to -2 V.
Maximum Input Voltage: ±15 V.
Threshold Accuracy: ±(100 mV + 3% of threshold setting).
Input Dynamic Range: 6 Vp-p centered around the threshold.
Minimum Voltage Swing: 500 mV.
Input Impedance: 20 kΩ.
Probe Loading: 3 pF.
Vertical Resolution: 1 bit.

Horizontal System Digital Channels
Maximum Sample Rate (Main): 500 MS/s (2 ns resolution).
Maximum Record Length (Main): 10M points.
Maximum Sample Rate (MagniVu): 16.5 GS/s (60.6 ps resolution).
Maximum Record Length (MagniVu): 10k points centered around the trigger.
Minimum Detectable Pulse Width: 1.5 ns.
Channel-to-Channel Skew: 500 ps typical.





Standard Calibration $240.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX MSO4054. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Channel Bandwidth
Channel Bandwidth is the bandwidth over which power is measured. This is usually the bandwidth in which almost all of the power of a signal is contained.

Jitter
Jitter in technical terms is the deviation in or displacement of some aspect of the pulses in a high-frequency digital signal. Jitter is the time variation of a periodic signal in electronics and telecommunications, often in relation to a reference clock source. Jitter may be observed in characteristics such as the frequency of successive pulses, the signal amplitude, or phase of periodic signals. Jitter is a significant, and usually undesired, factor in the design of almost all communications links (e.g., USB, PCI-e, SATA, OC-48). In clock recovery applications it is called timing jitter.

Overshoot
Overshoot is the distortion that follows a major transition; the difference between the peak power point and the pulse-top amplitude computed as a percentage of the pulse-top amplitude.

Rise Time
Rise time refers to the time required for a signal to change from a specified low value to a specified high value, usually 10 and 90 percent of pulse-top amplitude (vertical display is linear power).

Please contact us for your TEKTRONIX MSO4054 CALIBRATION and/or TEKTRONIX MSO4054 4+16 Ch 500 MHz, 5 GS/s, Mixed Signal Oscilloscope REPAIR
