TEKTRONIX MSO4104 REPAIR and TEKTRONIX MSO4104 CALIBRATION


Custom-Cal has a high success rate in the repair of the TEKTRONIX MSO4104. A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX MSO4104 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope?
Shop for Comparable Products on our
 used Oscilloscope page


   TEKTRONIX MSO4104   Description / Specification:

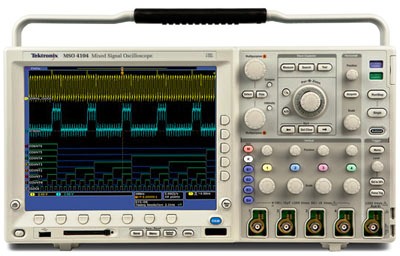

TEKTRONIX MSO4104 4+16 Ch 1 GHz, 5 GS/s, Mixed Signal Oscilloscope

The Tektronix MSO4104 Mixed Signal Oscilloscope can analyze up to 20 analog and digital signals with a single instrument to quickly find and diagnose problems in complex designs. Bandwidths up to 1 GHz and a minimum of 5x oversampling on all channels ensure you have the performance you need to see fast-changing signal details. To capture long windows of signal activity while maintaining fine timing resolution, the MSO4104 offers a deep record length of 10M points standard on all channels.

Vertical System Analog Channels
Input Channels: 4.
Analog Bandwidth (-3 dB) 5 mV/div -1 V/div: 1 GHz.
Calculated Rise Time 5 mV/div (typical): 350 ps.
Hardware Bandwidth Limits: 20 MHz or 250 MHz.
Input Coupling: AC, DC, GND.
Input Impedance 1 MΩ: ±1%, 50 Ω ±1%.
Input Sensitivity, 1 MΩ: 1 mV/div to 10 V/div.
Input Sensitivity, 50 Ω: 1 mV/div to 1 V/div.
Vertical Resolution: 8 bits (11 bits with Hi Res).
Max Input Voltage, 1 MΩ: 250 VRMS with peaks ≤ ±400 V.
Max Input Voltage, 50 Ω: 5 VRMS with peaks < ±20 V.
DC Gain Accuracy: ±1.5% with offset set to 0 V.
Channel-to-Channel Isolation: ≥100:1 at ≤100 MHz and ≥30:1 at >100 MHz up to the rated bandwidth for any two channels having equal volts/div settings.

Horizontal System Analog Channels
Maximum Sample Rate (All channels): 5 GS/s.
Maximum Record Length (All channels): 10M points.
Maximum Duration at Highest Sample Rate (All channels): 2 ms.
Time Base Range: 400 ps to 1,000 s.
Time Base Delay Time Range: -10 divisions to 5000 s.
Channel-to-Channel Deskew Range: ±100 ns.
Time Base Accuracy: ±5 ppm over any ≥1 ms interval.

Vertical System Digital Channels
Input Channels: 16 Digital (D15 - D0).
Thresholds: Per-channel Thresholds.
Threshold Selections: TTL, CMOS, ECL, PECL, User Defined.
User-defined Threshold Range: +5 to -2 V.
Maximum Input Voltage: ±15 V.
Threshold Accuracy: ±(100 mV + 3% of threshold setting).
Input Dynamic Range: 6 Vp-p centered around the threshold.
Minimum Voltage Swing: 500 mV.
Input Impedance: 20 kΩ.
Probe Loading: 3 pF.
Vertical Resolution: 1 bit.

Horizontal System Digital Channels
Maximum Sample Rate (Main): 500 MS/s (2 ns resolution).
Maximum Record Length (Main): 10M points.
Maximum Sample Rate (MagniVu): 16.5 GS/s (60.6 ps resolution).
Maximum Record Length (MagniVu): 10k points centered around the trigger.
Minimum Detectable Pulse Width: 1.5 ns.
Channel-to-Channel Skew: 500 ps typical.





Standard Calibration $200.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX MSO4104. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Crest Factor
Crest factor or peak-to-average ratio (PAR) is a measurement of a waveform, calculated from the peak amplitude of the waveform divided by the RMS value of the waveform

Linearity
Linearity is the relative difference between the displayed power ratio, Dx/D0, and the actual (true) power ratio Px/P0 caused by changing the displayed power level from the reference level, D0, to an arbitrary displayed level, Dx.

Phase Noise
Phase noise is the frequency domain representation of rapid, short-term, random fluctuations in the phase of a waveform, caused by time domain instabilities. Phase noise (L(f)) is typically expressed in units of dBc/Hz, representing the noise power relative to the carrier contained in a 1 Hz bandwidth centered at a certain offsets from the carrier.

Sensitivity
Sensitivity is the minimum magnitude of input signal required to produce a specified output signal having a specified signal-to-noise ratio, or other specified criteria.


Please contact us for your TEKTRONIX MSO4104 REPAIR and/or TEKTRONIX MSO4104 4+16 Ch 1 GHz, 5 GS/s, Mixed Signal Oscilloscope CALIBRATION
