FLUKE 177 CALIBRATION and FLUKE 177 REPAIR


A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the FLUKE 177 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Multimeter DMM?
Shop for Comparable Products on our
 used Multimeter DMM page


   FLUKE 177   Description / Specification:

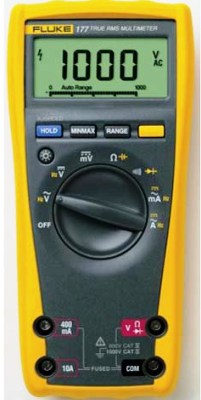

FLUKE 177 Handheld True RMS Digital Multimeter

The Fluke 177 True RMS digital multimeter gives you voltage and current measurements, 6000-count resolution, manual and automatic ranging and provide frequency, capacitance, resistance, continuity and diode measurements. It includes a digital display with analog bar graph and backlight. Specifications. Voltage DC: Accuracy ± (0.09%+2), Max. Resolution 0.1 mV, Maximum 1000 V. Voltage AC: Accuracy ± (1.0%+3), Max. Resolution 0.1 mV, Maximum 1000 V. Current DC: Accuracy ± (1.0%+3), Max. Resolution 0.01 mA, Maximum 10 A. Current AC: Accuracy ± (1.5%+3), Max. Resolution 0.01 mA, Maximum 10 A. Resistance: Accuracy ± (0.9%+1), Max. Resolution 0.1 ohm, Maximum 50 M-ohm. Capacitance: Accuracy ± (1.2%+2), Max. Resolution 1 nF, Maximum 10,000 µF. Frequency: Accuracy ± (0.1%+1), Max. Resolution 0.01 Hz, Maximum 100 kHz.





Standard Calibration $95.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the FLUKE 177. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

dBc
dBc (decibels relative to the carrier) is the power ratio of a signal to a carrier signal, expressed in decibels. If the dBc figure is positive, then the relative signal strength is greater than the carrier signal strength. If the dBc figure is negative, then the relative signal strength is less than carrier signal strength.

Load Regulation
Load regulation is the capability to maintain a constant voltage (or current) level on the output channel of a power supply despite changes in the supply's load (such as a change in resistance value connected across the supply output).

Power Linearity
When changing the power level and measuring the differences (in dB) between actual and displayed power levels, the power linearity is ± half the span (in dB) between the maximum and the minimum value of all differences.

Settling Time
Settling time of an output device is the time elapsed from the application of an ideal instantaneous step input to the time at which the amplifier output has entered and remained within a specified error band, usually symmetrical about the final value.


Please contact us for your FLUKE 177 CALIBRATION and/or FLUKE 177 Handheld True RMS Digital Multimeter REPAIR
