   Keysight (Agilent) 81150A   Description / Specification:

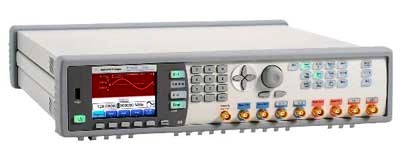

Keysight (Agilent) 81150A 1 or 2 Ch 120 MHz Pulse Function Arbitrary Noise Generator

The Keysight 81150A is a high precision pulse generator enhanced with versatile signal generation, modulation and distortion capabilities. It has an available optional pattern generator to test in addition to analog, digital and mixed signal devices
Features.

1 μHz to 120 MHz pulse generation with variable rise/fall time.
1 μHz to 240 MHz sine waveform output.
14-bit, 2 GSa/s arbitrary waveforms.
512 k samples deep arbitrary waveform memory per channel.
Pulse, sine, square, ramp, noise and arbitrary waveforms.
Noise, with selectable crest factor, and signal repetition time of 26 days.
FM, AM, PM, PWM, FSK modulation capabilities.
1- or 2- channel, coupled and uncoupled.
Differential outputs.

Two selectable output amplifiers.
High bandwidth amplifier;
  Amplitude: 50 mVPP to 5 VPP, 50 Ω into 50 Ω 100 mVPP to 10 VPP, 50 Ω into open.
  Voltage window: ± 5 V, 50 Ω into 50 Ω ± 10 V, 50 Ω into open ± 9 V, 5 Ω into 50 Ω.
High voltage amplifier;
  Amplitude: 100 mVPP to 10 VPP, 50 Ω into 50 Ω 200 mVPP to 20 VPP, 5 Ω into 50 Ω or 50 Ω into open.
  Voltage window: ± 10 V, 50 Ω into 50 Ω ± 20 V, 5 Ω into 50 Ω or 50 Ω into open.

Glitch-free change of timing parameters (delay, frequency, transition time, width, duty cycle).
Ideal and arbitrary bit shaped pattern up to 120 Mbit/s.
Two, three or four level signals.
PRBS up to 231.
16 Mbit pattern memory.
Pass through pattern for combined and physical and protocol test up to 10 Mbit/s.

Options.
001, 1-channel pulse function arbitrary noise generator.
002, 2-channel pulse function arbitrary noise generator.
PAT, License for 120 Mbit/s pattern generator.







Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Channel Bandwidth
Channel Bandwidth is the bandwidth over which power is measured. This is usually the bandwidth in which almost all of the power of a signal is contained.

Jitter
Jitter in technical terms is the deviation in or displacement of some aspect of the pulses in a high-frequency digital signal. Jitter is the time variation of a periodic signal in electronics and telecommunications, often in relation to a reference clock source. Jitter may be observed in characteristics such as the frequency of successive pulses, the signal amplitude, or phase of periodic signals. Jitter is a significant, and usually undesired, factor in the design of almost all communications links (e.g., USB, PCI-e, SATA, OC-48). In clock recovery applications it is called timing jitter.

Overshoot
Overshoot is the distortion that follows a major transition; the difference between the peak power point and the pulse-top amplitude computed as a percentage of the pulse-top amplitude.

Rise Time
Rise time refers to the time required for a signal to change from a specified low value to a specified high value, usually 10 and 90 percent of pulse-top amplitude (vertical display is linear power).
