KEITHLEY 2400-C CALIBRATION and KEITHLEY 2400-C REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the KEITHLEY 2400-C Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another General Meter?
Shop for Comparable Products on our  used General Meter page


   KEITHLEY 2400-C   Description / Specification:

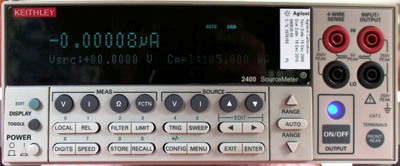

KEITHLEY 2400-C General Purpose Source Meter w/ Contact Check

The Keithley 2400-C General Purpose Source Meter w/ Contact Check, performs measurements Up to 200V and 1A, 20W Power Output. It completes the contact check verification and notification process in just 350µs to maintain high speed production throughout. Contact Check enabled on the instrument's front panel or remotely via the GPIB. Built-in "Source Memory" programmable sequencer stores up to 100 different tests for high production throughout. Rugged design with 75,000-hour MTBF provides reliability in non-stop production environments. Built-in comparator simplifies pass/fail testing. Digital I/O for fast binning or connection to component handlers. 0.012% basic accuracy with 5-1/2-digit resolution for precise measurements. Specifications. Voltage Source range: 200.00 mV (resolution 5 µV), 2.00000 V (resolution 50 µV), 20.0000 V (resolution 500 µV), 200.00 V (resolution 5 mV). Max. Output Power: 22W, four quadrant source or sink operation. Voltage Regulation: Line: 0.01% of range. Load: 0.01% of range + 100µV. Noise 10Hz – 1MHz (p-p): 10 mV typical into a resistive load. Current Source minimum range: ±1.00000 µA (resolution 50 pA). Current Source maximum range: ±1.00000 A (resolution 50 µA). Current Regulation: Line: 0.01% of range. Load: 0.01% of range + 100pA. Voltage Measure range: 200.00 mV (resolution 1 µV), 2.00000 V (resolution 10 µV), 20.0000 V (resolution 100 µV), 200.000 V (resolution 1 mV). Current Measure minimum range: ±1.00000 µA (resolution 10 pA). Current Measure maximum range: ±1.00000 A (resolution 10 µA).





Standard Calibration $285.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the KEITHLEY 2400-C. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Crest Factor
Crest factor or peak-to-average ratio (PAR) is a measurement of a waveform, calculated from the peak amplitude of the waveform divided by the RMS value of the waveform

Linearity
Linearity is the relative difference between the displayed power ratio, Dx/D0, and the actual (true) power ratio Px/P0 caused by changing the displayed power level from the reference level, D0, to an arbitrary displayed level, Dx.

Phase Noise
Phase noise is the frequency domain representation of rapid, short-term, random fluctuations in the phase of a waveform, caused by time domain instabilities. Phase noise (L(f)) is typically expressed in units of dBc/Hz, representing the noise power relative to the carrier contained in a 1 Hz bandwidth centered at a certain offsets from the carrier.

Sensitivity
Sensitivity is the minimum magnitude of input signal required to produce a specified output signal having a specified signal-to-noise ratio, or other specified criteria.

Please contact us for your KEITHLEY 2400-C CALIBRATION and/or KEITHLEY 2400-C General Purpose Source Meter w/ Contact Check REPAIR
