EXFO IQ-2102D CALIBRATION and EXFO IQ-2102D REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the EXFO IQ-2102D Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Laser Source (DFB-LD-WDM-BBS)?
Shop for Comparable Products on our  used Laser Source (DFB-LD-WDM-BBS) page or new Laser Source (DFB-LD-WDM-BBS) page


   EXFO IQ-2102D   Description / Specification:   Spec Sheet

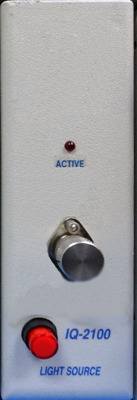

EXFO IQ-2102D 1300 nm Surface-Emitting LED Source Module

The EXFO IQ-2102D Surface-Emitting LED Light Source was designed for optimal stability. It is suitable for laboratory, manufacturing, testing environments, quality control, calibration, acceptance testing, and loss and return loss testing. The IQ-2102D features variable output power over a 6 dB range to simulate power losses with precision. The power can be fine-tuned in increments of 0.1 dB. The IQ-2102D is a module that is housed in the IQ-200 Optical Test System. It operates as a single test unit in the IQ-200 or combines with other test equipment to create a true multi-tasking environment in the IQ-200. Specifications. Wavelength: 1300 +50/-60 nm. Spectral width (FWHM): <= 145 nm. Output power: >= -19 dBm. Stability 15 min. (T = constant): ±0.003 dB. Stability 8 hr. (T = 0° to 50° ±1°C): ±0.03 dB. Temperature sensitivity: <= 0.4 dB. Modulation: 270 Hz, 1kHz, 2kHz (50% duty cycle).





Standard Calibration $255.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the EXFO IQ-2102D. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Optical Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

dBm
Optical power referenced to 1 millimatt

Multimode Fiber
Multimode Fiber has a large core (almost always 62.5 microns - a micron is one one millionth of a meter - but sometimes 50 microns) and is used with LED sources at wavelengths of 850 and 1300 nm for short distance, lower speed networks like LANs. Both multimode and singlemode fiber have an outside diameter of 125 microns - about 5 thousandths of an inch - just slightly larger than a human hair.

Power Repeatability
Power Repeatability is the random uncertainty in reproducing the power level after changing and re-setting the power level. The power repeatability is ± half the span (in dB) between the highest and lowest actual power. Note: - The long-term power repeatability can be obtained by taken the power repeatability and power stability into account.

Refractive Index
The refractive index or index of refraction of a substance is a measure of the speed of light in that substance. It is expressed as a ratio of the speed of light in vacuum relative to that in the considered medium. The velocity at which light travels in vacuum is a physical constant, and the fastest speed at which energy or information can be transferred. However, light travels slower through any given material, or medium, that is not vacuum.

Total insertion loss
A measure of the loss of light within an optical component
